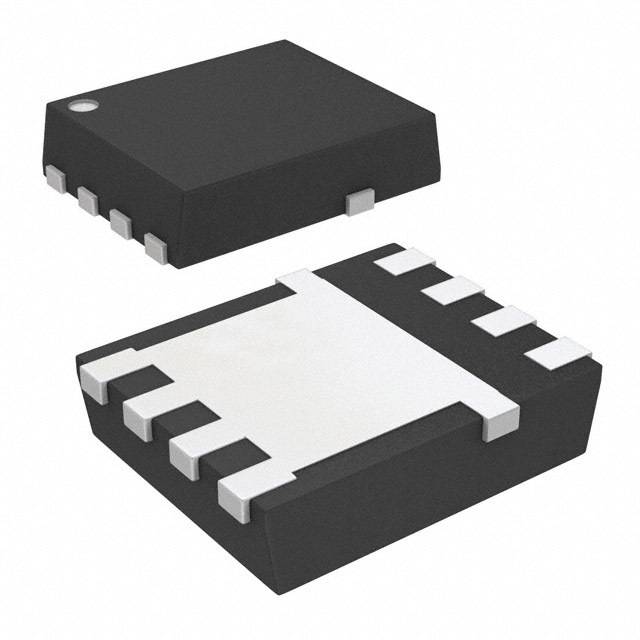

| Part Number | MCP87090T-U/MF | MCP87030T-U/MF | MCP87050T-U/MF |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 25 V | 25 V | 25 V |
| Current - Continuous Drain (Id) @ 25°C | 64A (Tc) | 100A (Tc) | 100A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 10.5mOhm @ 10V | 3.5mOhm @ 20A, 10V | 5mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 1.7V @ 250µA | 1.6V @ 250µA | 1.6V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 10 nC @ 4.5 V | 22 nC @ 4.5 V | 15 nC @ 4.5 V |
| Vgs (Max) | +10V, -8V | +10V, -8V | +10V, -8V |
| Input Capacitance (Ciss) (Max) @ Vds | 580 pF @ 12.5 V | 1635 pF @ 12.5 V | 1040 pF @ 12.5 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 2.2W (Ta) | 2.2W (Ta) | 2.2W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 8-PDFN (5x6) | 8-PDFN (5x6) | 8-PDFN (5x6) |
| Package / Case | 8-PowerTDFN | 8-PowerTDFN | 8-PowerTDFN |
