| Part Number | MCP6V87T-E/MNY | MCP6V97T-E/MNY | MCP6V17T-E/MNY | MCP6V37T-E/MNY | MCP6V67T-E/MNY | MCP6V77T-E/MNY | MCP6V82T-E/MNY |
|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Amplifier Type | Chopper (Zero-Drift) | Zero-Drift | Zero-Drift | Zero-Drift | Zero-Drift | Zero-Drift | Zero-Drift |
| Number of Circuits | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Output Type | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail |
| Slew Rate | 4V/µs | 9.5V/µs | 0.03V/µs | 0.13V/µs | 0.45V/µs | 1V/µs | 4V/µs |
| Gain Bandwidth Product | 5 MHz | 10 MHz | 80 kHz | 300 kHz | 1 MHz | 2 MHz | 5 MHz |
| -3db Bandwidth | - | - | - | - | - | - | - |
| Current - Input Bias | 2 pA | 2 pA | 5 pA | 5 pA | 1 pA | 1 pA | 2 pA |
| Voltage - Input Offset | 25 µV | 25 µV | 25 µV | 25 µV | 25 µV | 25 µV | 9 µV |
| Current - Supply | 500µA | 1.1mA (x2 Channels) | 6.5µA (x2 Channels) | 21µA (x2 Channels) | 80µA (x2 Channels) | 170µA (x2 Channels) | 500µA (x2 Channels) |
| Current - Output / Channel | 40 mA | 40 mA | 17 mA | 21 mA | 23 mA | 26 mA | 40 mA |
| Voltage - Supply Span (Min) | 2.5 V | 2.4 V | 1.6 V | 1.8 V | 1.8 V | 2 V | 2.2 V |
| Voltage - Supply Span (Max) | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

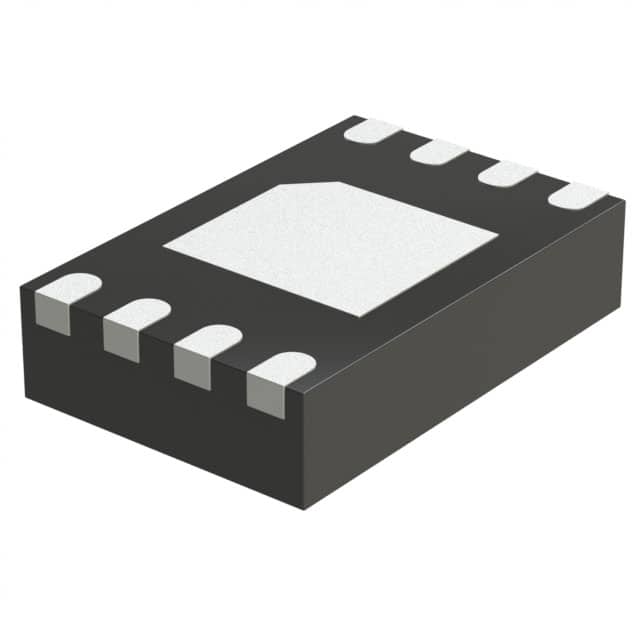

| Package / Case | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-TDFN (2x3) | 8-TDFN (2x3) | 8-TDFN (2x3) | 8-TDFN (2x3) | 8-TDFN (2x3) | 8-TDFN (2x3) | 8-TDFN (2x3) |
