| Part Number | MCP6H01T-E/MNY | MCP6H02T-E/MNY | MCP6H71T-E/MNY | MCP6H81T-E/MNY | MCP6H91T-E/MNY |
|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active |
| Amplifier Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Number of Circuits | 1 | 2 | 1 | 1 | 1 |
| Output Type | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail |
| Slew Rate | 0.8V/µs | 0.8V/µs | 2V/µs | 5V/µs | 10V/µs |
| Gain Bandwidth Product | 1.2 MHz | 1.2 MHz | 2.7 MHz | 5.5 MHz | 10 MHz |
| -3db Bandwidth | - | - | - | - | - |
| Current - Input Bias | 10 pA | 10 pA | 10 pA | 10 pA | 10 pA |
| Voltage - Input Offset | 700 µV | 700 µV | 1 mV | 1 mV | 1 mV |
| Current - Supply | 135µA | 135µA (x2 Channels) | 480µA | 700µA | 2mA |
| Current - Output / Channel | - | 50 mA | - | 55 mA | 41 mA |
| Voltage - Supply Span (Min) | 3.5 V | 3.5 V | 3.5 V | 3.5 V | 3.5 V |
| Voltage - Supply Span (Max) | 16 V | 16 V | 12 V | 12 V | 12 V |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C (TA) | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

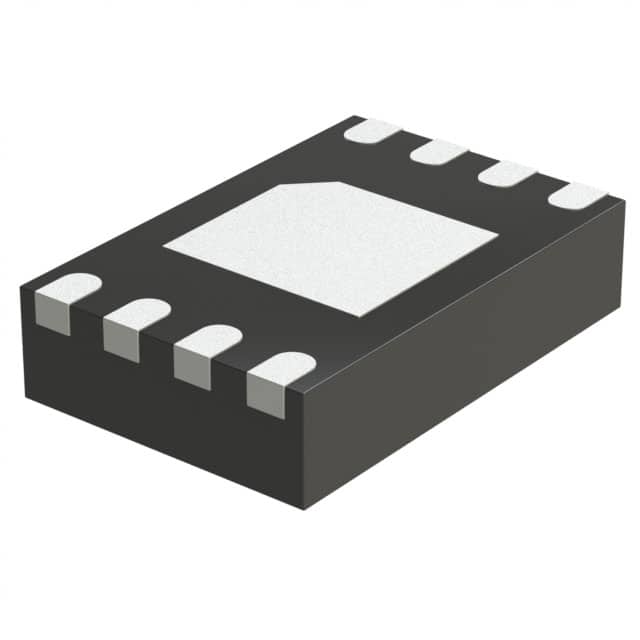

| Package / Case | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-TDFN (2x3) | 8-TDFN (2x3) | 8-TDFN (2x3) | 8-TDFN (2x3) | 8-TDFN (2x3) |
