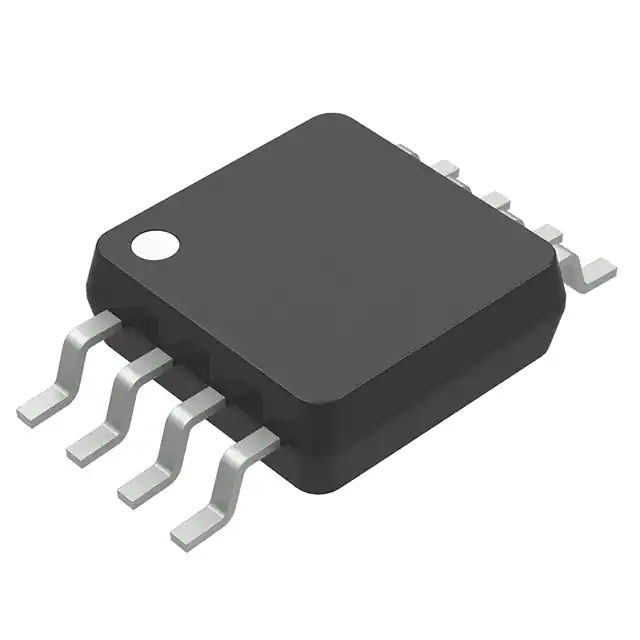

| Part Number | MCP4801-E/MS | MCP4802-E/MS | MCP4821-E/MS | MCP4811-E/MS | MCP4801T-E/MS | MCP4801-E/MC |
|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active |
| Number of Bits | 8 | 8 | 12 | 10 | 8 | 8 |
| Number of D/A Converters | 1 | 2 | 1 | 1 | 1 | 1 |
| Settling Time | 4.5µs (Typ) | 4.5µs (Typ) | 4.5µs (Typ) | 4.5µs (Typ) | 4.5µs (Typ) | 4.5µs (Typ) |
| Output Type | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered |
| Differential Output | No | No | No | No | No | No |
| Data Interface | SPI | SPI | SPI | SPI | SPI | SPI |
| Reference Type | Internal | Internal | Internal | Internal | Internal | Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| INL/DNL (LSB) | ±0.25, ±0.2 | ±0.25, ±0.2 | ±4, ±0.25 | ±1, ±0.2 | ±0.25, ±0.2 | ±0.25, ±0.2 |
| Architecture | String DAC | String DAC | String DAC | String DAC | String DAC | String DAC |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-VFDFN Exposed Pad |
| Supplier Device Package | 8-MSOP | 8-MSOP | 8-MSOP | 8-MSOP | 8-MSOP | 8-DFN (2x3) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
