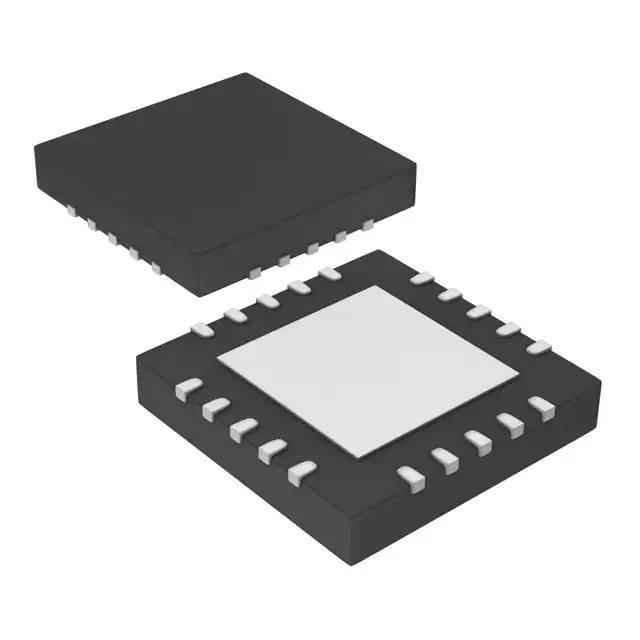

| Part Number | MCP47FEB24-E/MQ | MCP47FVB24-E/MQ | MCP47FEB24T-E/MQ | MCP47FEB28-E/MQ | MCP47FEB04-E/MQ | MCP47FEB14-E/MQ |
|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active |
| Number of Bits | 12 | 12 | 12 | 12 | 8 | 10 |
| Number of D/A Converters | 4 | 4 | 4 | 8 | 4 | 4 |
| Settling Time | 7.8µs (Typ) | 7.8µs (Typ) | 7.8µs (Typ) | 7.8µs (Typ) | 7.8µs (Typ) | 7.8µs (Typ) |
| Output Type | Voltage - Buffered, Voltage - Unbuffered | Voltage - Buffered, Voltage - Unbuffered | Voltage - Buffered, Voltage - Unbuffered | Voltage - Buffered, Voltage - Unbuffered | Voltage - Buffered, Voltage - Unbuffered | Voltage - Buffered, Voltage - Unbuffered |
| Differential Output | No | No | No | No | No | No |
| Data Interface | I²C | I²C | I²C | I²C | I²C | I²C |
| Reference Type | External | External | External | External | External | External |
| Voltage - Supply, Analog | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| INL/DNL (LSB) | ±1.5LSB, ±0.2 | ±1.5LSB, ±0.2 | ±1.5LSB, ±0.2 | ±1.5LSB, ±0.2 | ±0.1, ±0.0125LSB | ±0.4LSB, ±0.05LSB |
| Architecture | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Package / Case | 20-VQFN Exposed Pad | 20-VQFN Exposed Pad | 20-VQFN Exposed Pad | 20-VQFN Exposed Pad | 20-VQFN Exposed Pad | 20-VQFN Exposed Pad |
| Supplier Device Package | 20-VQFN (5x5) | 20-VQFN (5x5) | 20-VQFN (5x5) | 20-VQFN (5x5) | 20-VQFN (5x5) | 20-VQFN (5x5) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
