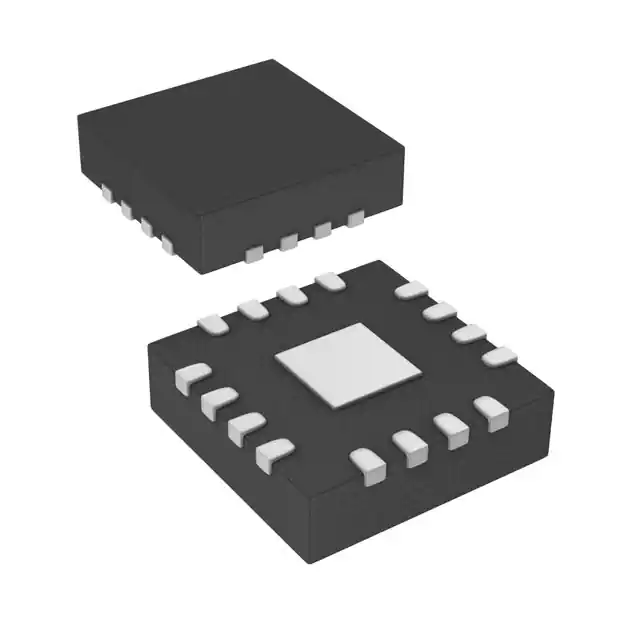

| Part Number | MCP47CMB21-E/MG | MCP47CMB22-E/MG | MCP47CVB21-E/MG | MCP47CMB01-E/MG | MCP47CMB11-E/MG | MCP47CMB21-E/MF |
|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active |
| Number of Bits | 12 | 12 | 12 | 8 | 10 | 12 |
| Number of D/A Converters | 1 | 2 | 1 | 1 | 1 | 1 |
| Settling Time | 16µs (Typ) | 16µs (Typ) | 16µs (Typ) | 16µs (Typ) | 16µs (Typ) | 16µs (Typ) |
| Output Type | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered |
| Differential Output | Yes | No | Yes | Yes | Yes | No |
| Data Interface | I²C | I²C | I²C | I²C | I²C | I²C |
| Reference Type | External, Internal | External, Internal | External, Internal | External, Internal | External, Internal | External, Internal |
| Voltage - Supply, Analog | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V |
| Voltage - Supply, Digital | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V |
| INL/DNL (LSB) | ±1, ±1 | ±1, ±1 | ±1, ±1 | ±0.1, ±0.1 | ±0.25, ±0.25 | ±1, ±1 |
| Architecture | Current Source | Current Source | Current Source | Current Source | Current Source | Current Source |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Package / Case | 16-VFQFN Exposed Pad | 16-VFQFN Exposed Pad | 16-VFQFN Exposed Pad | 16-VFQFN Exposed Pad | 16-VFQFN Exposed Pad | 10-VFDFN Exposed Pad |
| Supplier Device Package | 16-QFN (3x3) | 16-QFN (3x3) | 16-QFN (3x3) | 16-QFN (3x3) | 16-QFN (3x3) | 10-DFN (3x3) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
