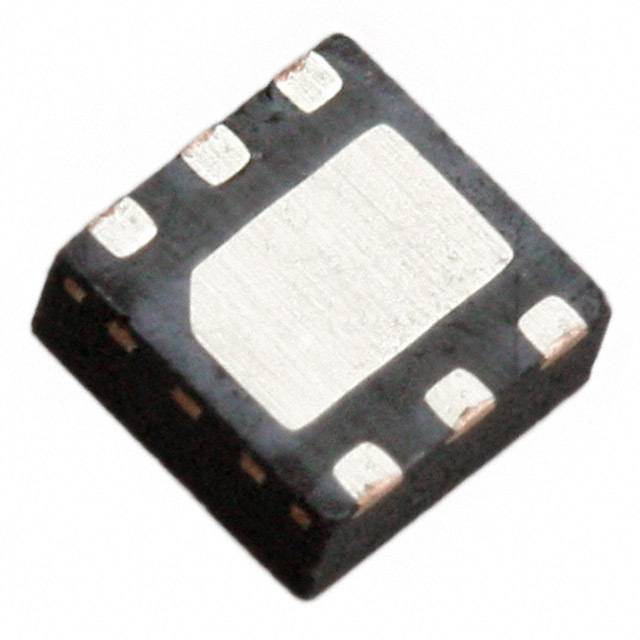

| Part Number | MCP4716A3T-E/MAY | MCP4726A3T-E/MAY | MCP4706A3T-E/MAY | MCP4716A0T-E/MAY | MCP4716A1T-E/MAY | MCP4716A2T-E/MAY |
|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active |
| Number of Bits | 10 | 12 | 8 | 10 | 10 | 10 |
| Number of D/A Converters | 1 | 1 | 1 | 1 | 1 | 1 |
| Settling Time | 6µs (Typ) | 6µs (Typ) | 6µs (Typ) | 6µs (Typ) | 6µs (Typ) | 6µs (Typ) |
| Output Type | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered |
| Differential Output | No | No | No | No | No | No |
| Data Interface | I²C | I²C | I²C | I²C | I²C | I²C |
| Reference Type | External, Supply | External, Supply | External, Supply | External, Supply | External, Supply | External, Supply |
| Voltage - Supply, Analog | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| INL/DNL (LSB) | ±0.5, ±0.05 | ±2, ±0.2 | ±0.125, ±0.0125 | ±0.5, ±0.05 | ±0.5, ±0.05 | ±0.5, ±0.05 |
| Architecture | R-2R | R-2R | R-2R | R-2R | R-2R | R-2R |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Package / Case | 6-VDFN Exposed Pad | 6-VDFN Exposed Pad | 6-VDFN Exposed Pad | 6-VDFN Exposed Pad | 6-VDFN Exposed Pad | 6-VDFN Exposed Pad |
| Supplier Device Package | 6-DFN (2x2) | 6-DFN (2x2) | 6-DFN (2x2) | 6-DFN (2x2) | 6-DFN (2x2) | 6-DFN (2x2) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
