| Part Number | MCP41HV31T-503E/MQ | MCP41HV51T-503E/MQ | MCP41HV31-503E/MQ | MCP41HV31T-103E/MQ | MCP41HV31T-502E/MQ |
|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active |
| Taper | Linear | Linear | Linear | Linear | Linear |
| Configuration | Potentiometer | Potentiometer | Potentiometer | Potentiometer | Potentiometer |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 |
| Number of Taps | 128 | 256 | 128 | 128 | 128 |
| Resistance (Ohms) | 50k | 50k | 50k | 10k | 5k |
| Interface | SPI | SPI | SPI | SPI | SPI |
| Memory Type | Volatile | Volatile | Volatile | Volatile | Volatile |
| Voltage - Supply | 1.8V ~ 5.5V, 10V ~ 36V, ±5V ~ 18V | 1.8V ~ 5.5V, 10V ~ 36V, ±5V ~ 18V | 1.8V ~ 5.5V, 10V ~ 36V, ±5V ~ 18V | 1.8V ~ 5.5V, 10V ~ 36V, ±5V ~ 18V | 1.8V ~ 5.5V, 10V ~ 36V, ±5V ~ 18V |
| Features | - | - | - | - | - |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Temperature Coefficient (Typ) | 100ppm/°C | 100ppm/°C | 100ppm/°C | 100ppm/°C | 100ppm/°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

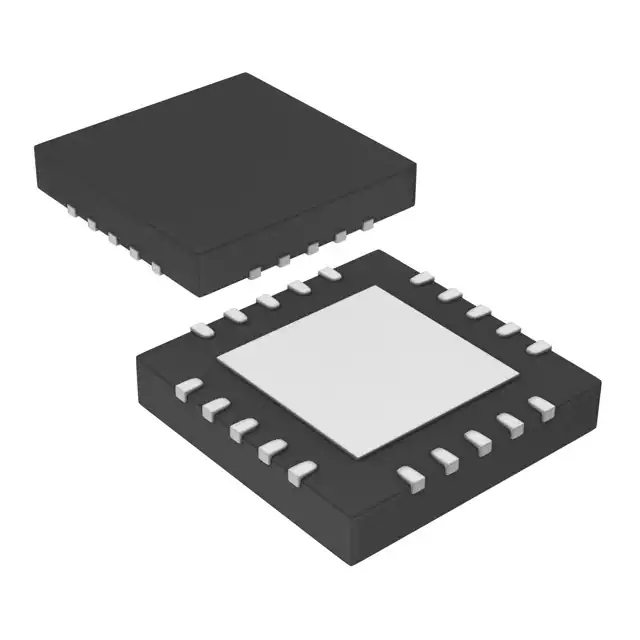

| Supplier Device Package | 20-VQFN (5x5) | 20-VQFN (5x5) | 20-VQFN (5x5) | 20-VQFN (5x5) | 20-VQFN (5x5) |
| Package / Case | 20-VQFN Exposed Pad | 20-VQFN Exposed Pad | 20-VQFN Exposed Pad | 20-VQFN Exposed Pad | 20-VQFN Exposed Pad |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Resistance - Wiper (Ohms) (Typ) | 145 | 145 | 145 | 145 | 145 |
