| Part Number | MCP37D31-200I/TE | MCP37D31-200I/TL | MCP37D31T-200I/TE | MCP37231-200I/TE | MCP37D11-200I/TE | MCP37D21-200I/TE | MCP37D31-200E/TE |
|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Number of Bits | 16 | 16 | 16 | 16 | 12 | 14 | 16 |
| Sampling Rate (Per Second) | 200M | 200M | 200M | 200M | 200M | 200M | 200M |
| Number of Inputs | 1, 2, 4, 8 | 1, 2, 4, 8 | 8 | 1, 2, 4, 8 | 1, 2, 4, 8 | 1, 2, 4, 8 | 1, 2, 4, 8 |
| Input Type | Differential | Differential | Differential | Differential | Differential | Differential | Differential |
| Data Interface | LVDS - Parallel, Parallel | LVDS - Parallel, Parallel | LVDS - Parallel, Serial | LVDS - Parallel, Parallel | LVDS - Parallel, Parallel | LVDS - Parallel, Parallel | LVDS - Parallel, Parallel |
| Configuration | MUX-ADC | MUX-ADC | S/H-MUX-ADC | MUX-ADC | MUX-ADC | MUX-ADC | MUX-S/H-ADC |
| Ratio - S/H:ADC | - | - | 1:1 | - | - | - | 1:1 |
| Number of A/D Converters | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Architecture | Pipelined | Pipelined | Pipelined | Pipelined | Pipelined | Pipelined | Pipelined |
| Reference Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal |
| Voltage - Supply, Analog | 1.14V ~ 1.26V, 1.71V ~ 1.89V | 1.14V ~ 1.26V, 1.71V ~ 1.89V | 1.14V ~ 1.26V, 1.71V ~ 1.89V | 1.14V ~ 1.26V, 1.71V ~ 1.89V | 1.14V ~ 1.26V, 1.71V ~ 1.89V | 1.14V ~ 1.26V, 1.71V ~ 1.89V | 1.14V ~ 1.89V |
| Voltage - Supply, Digital | 1.14V ~ 1.26V, 1.71V ~ 1.89V | 1.14V ~ 1.26V, 1.71V ~ 1.89V | 1.14V ~ 1.26V, 1.71V ~ 1.89V | 1.14V ~ 1.26V, 1.71V ~ 1.89V | 1.14V ~ 1.26V, 1.71V ~ 1.89V | 1.14V ~ 1.26V, 1.71V ~ 1.89V | 1.14V ~ 1.89V |
| Features | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 125°C |

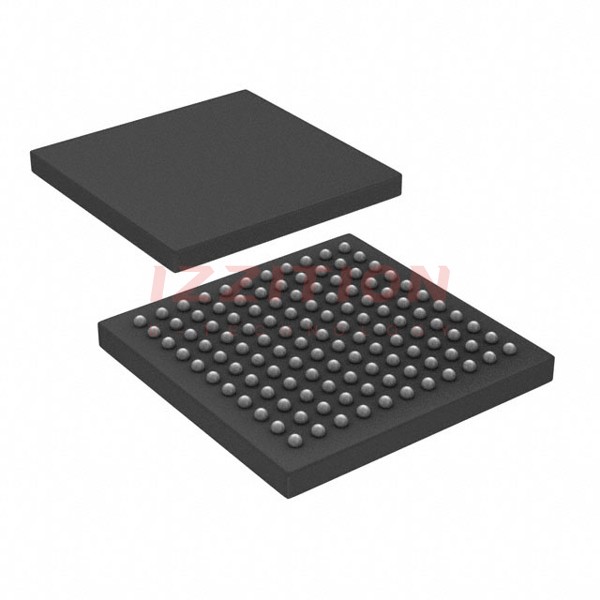

| Package / Case | 121-TFBGA | 124-VFTLA Dual Rows, Exposed Pad | 121-TFBGA | 121-TFBGA | 121-TFBGA | 121-TFBGA | 121-TFBGA |
| Supplier Device Package | 121-TFBGA (8x8) | 124-VTLA (9x9) | 121-TFBGA (8x8) | 121-TFBGA (8x8) | 121-TFBGA (8x8) | 121-TFBGA (8x8) | 121-TFBGA (8x8) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
