| Part Number | MCP3464T-E/NC | MCP3564T-E/NC | MCP3461T-E/NC | MCP3462T-E/NC | MCP3464RT-E/NC |
|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active |
| Number of Bits | 16 | 24 | 16 | 16 | 16 |
| Sampling Rate (Per Second) | 153.6k | 153.6k | 153.6k | 153.6k | 153.6k |
| Number of Inputs | 4 | 4 | 1 | 2 | 4 |
| Input Type | Differential, Single Ended | Differential, Single Ended | Differential, Single Ended | Differential, Single Ended | Differential, Single Ended |
| Data Interface | SPI | SPI | SPI | SPI | SPI |
| Configuration | - | - | - | - | MUX-ADC |
| Ratio - S/H:ADC | - | - | - | - | 0:4 |
| Number of A/D Converters | 1 | 1 | 1 | 2 | 1 |
| Architecture | Sigma-Delta | Sigma-Delta | Sigma-Delta | Sigma-Delta | Sigma-Delta |
| Reference Type | External | - | External | External | External, Internal |
| Voltage - Supply, Analog | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | - | - | - | - | 1.8V ~ 3.7V |
| Features | Internal Oscillator, PGA, Temperature Sensor | Internal Oscillator, PGA, Temperature Sensor | Internal Oscillator, PGA, Temperature Sensor | Internal Oscillator, PGA, Temperature Sensor | Internal Oscillator, Temperature Sensor |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |

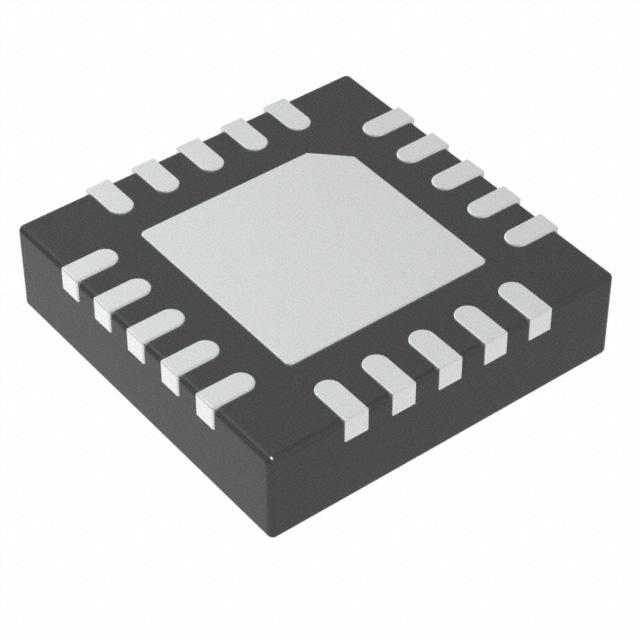

| Package / Case | 20-UFQFN Exposed Pad | 20-UFQFN Exposed Pad | 20-UFQFN Exposed Pad | 20-UFQFN Exposed Pad | 20-UFQFN Exposed Pad |
| Supplier Device Package | 20-UQFN (3x3) | 20-UQFN (3x3) | 20-UQFN (3x3) | 20-UQFN (3x3) | 20-UQFN (3x3) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
