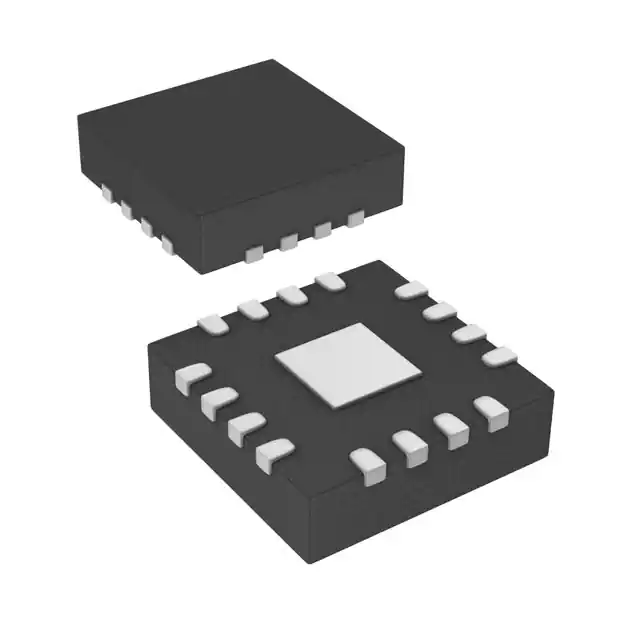

| Part Number | MCP23S09T-E/MG | MCP23009T-E/MG | MCP23S09-E/MG |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active |
| Number of I/O | 8 | 8 | 8 |
| Interface | SPI | I²C | SPI |
| Interrupt Output | Yes | Yes | Yes |
| Features | - | POR | - |
| Output Type | Open Drain | Open Drain | Open Drain |
| Current - Output Source/Sink | 25mA | 25mA | 25mA |
| Clock Frequency | 10 MHz | 3.4 MHz | 10 MHz |
| Voltage - Supply | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-VFQFN Exposed Pad | 16-VFQFN Exposed Pad | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-QFN (3x3) | 16-QFN (3x3) | 16-QFN (3x3) |
