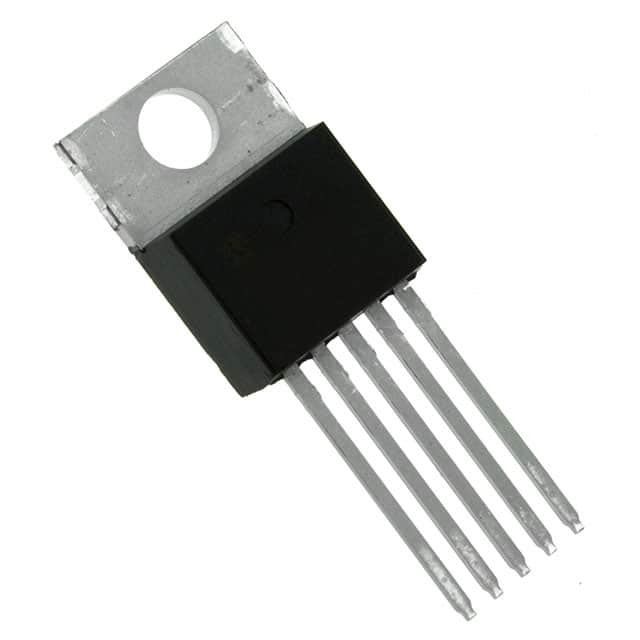

| Part Number | MCP1827-3302E/AT | MCP1827-3302E/ET | MCP1826-3302E/AT | MCP1827-3002E/AT |
|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 6V | 6V | 6V | 6V |
| Voltage - Output (Min/Fixed) | 3.3V | 3.3V | 3.3V | 3V |
| Voltage - Output (Max) | - | - | - | - |
| Voltage Dropout (Max) | 0.6V @ 1.5A | 0.6V @ 1.5A | 0.4V @ 1A | 0.6V @ 1.5A |
| Current - Output | 1.5A | 1.5A | 1A | 1.5A |
| Current - Quiescent (Iq) | 220 µA | 220 µA | 220 µA | 220 µA |
| Current - Supply (Max) | - | - | - | - |
| PSRR | 60dB (100Hz) | 60dB (100Hz) | 60dB (100Hz) | 60dB (100Hz) |
| Control Features | Enable, Power Good | Enable, Power Good | Enable, Power Good | Enable, Power Good |
| Protection Features | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Through Hole | Surface Mount | Through Hole | Through Hole |
| Package / Case | TO-220-5 | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA | TO-220-5 | TO-220-5 |
| Supplier Device Package | TO-220-5 | 5-DDPAK | TO-220-5 | TO-220-5 |
