Please send RFQ , we will respond immediately.

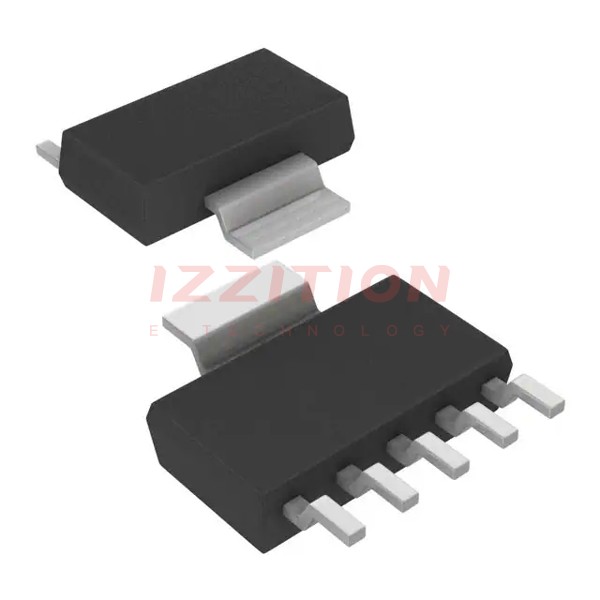

| Part Number | MCP1826T-ADJE/DC | MCP1825T-ADJE/DC |
|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology |
| Product Status | Active | Active |
| Output Configuration | Positive | Positive |
| Output Type | Adjustable | Adjustable |
| Number of Regulators | 1 | 1 |
| Voltage - Input (Max) | 6V | 6V |
| Voltage - Output (Min/Fixed) | 0.8V | 0.8V |
| Voltage - Output (Max) | 5V | 5V |
| Voltage Dropout (Max) | 0.4V @ 1A | 0.35V @ 500mA |
| Current - Output | 1A | 500mA |
| Current - Quiescent (Iq) | 220 µA | 220 µA |
| Current - Supply (Max) | - | - |
| PSRR | 60dB (100Hz) | 60dB (100Hz) |
| Control Features | Enable, Power Good | Enable, Power Good |
| Protection Features | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | SOT-223-6 | SOT-223-6 |
| Supplier Device Package | SOT-223-5 | SOT-223-5 |
