Please send RFQ , we will respond immediately.

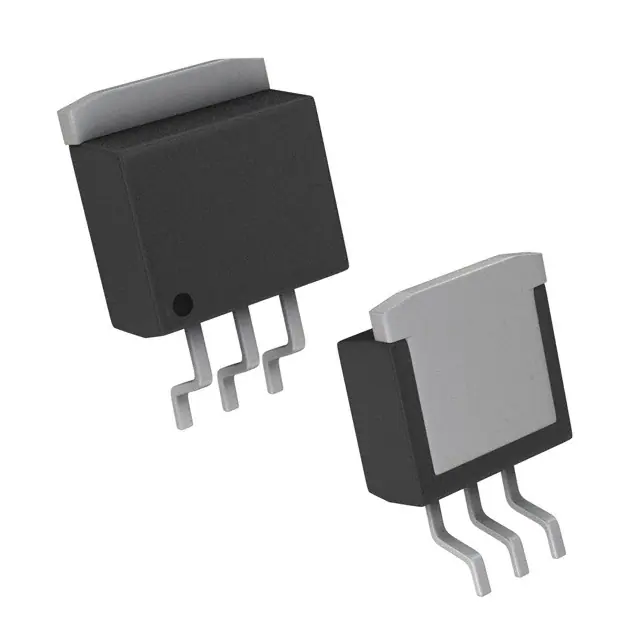

| Part Number | MCP1826S-5002E/EB | MCP1827S-5002E/EB | MCP1826ST-5002E/EB | MCP1825S-5002E/EB | MCP1826S-3002E/EB | MCP1826S-5002E/AB | MCP1826S-5002E/DB |
|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 6V | 6V | 6V | 6V | 6V | 6V | 6V |
| Voltage - Output (Min/Fixed) | 5V | 5V | 5V | 5V | 3V | 5V | 5V |
| Voltage - Output (Max) | - | - | - | - | - | - | - |
| Voltage Dropout (Max) | 0.4V @ 1A | 0.6V @ 1.5A | 0.4V @ 1A | 0.35V @ 500mA | 0.4V @ 1A | 0.4V @ 1A | 0.4V @ 1A |
| Current - Output | 1A | 1.5A | 1A | 500mA | 1A | 1A | 1A |
| Current - Quiescent (Iq) | 220 µA | 220 µA | 220 µA | 220 µA | 220 µA | 220 µA | 220 µA |
| Current - Supply (Max) | - | - | - | - | - | - | - |
| PSRR | 60dB (100Hz) | 60dB (100Hz) | 60dB (100Hz) | 60dB (100Hz) | 60dB (100Hz) | 60dB (100Hz) | 60dB (100Hz) |
| Control Features | - | - | - | - | - | - | - |
| Protection Features | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Through Hole | Surface Mount |
| Package / Case | TO-263-4, D²Pak (3 Leads + Tab), TO-263AA | TO-263-4, D²Pak (3 Leads + Tab), TO-263AA | TO-263-4, D²Pak (3 Leads + Tab), TO-263AA | TO-263-4, D²Pak (3 Leads + Tab), TO-263AA | TO-263-4, D²Pak (3 Leads + Tab), TO-263AA | TO-220-3 | TO-261-4, TO-261AA |
| Supplier Device Package | 3-DDPAK | 3-DDPAK | 3-DDPAK | 3-DDPAK | 3-DDPAK | TO-220-3 | SOT-223-3 |
