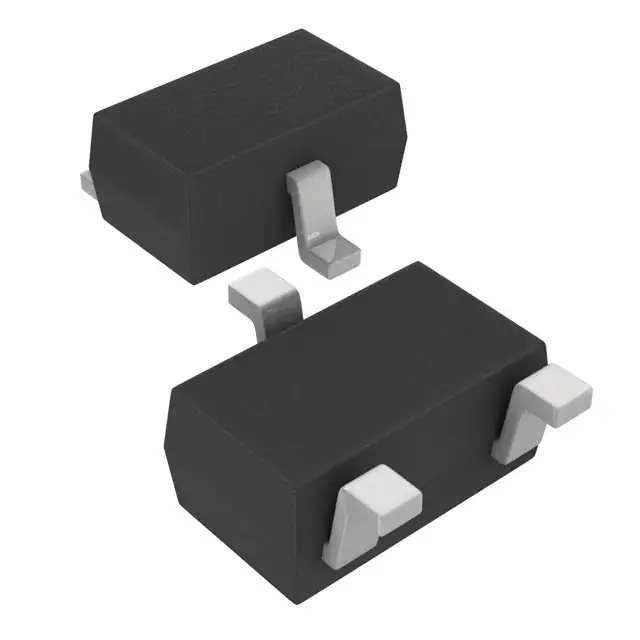

| Part Number | MCP1812AT-012/LB | MCP1812AT-012/LT | MCP1812AT-018/LB | MCP1812BT-012/LB | MCP1811AT-012/LB | MCP1812AT-010/LB |
|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 1.2V | 1.2V | 1.8V | 1.2V | 1.2V | 1V |
| Voltage - Output (Max) | - | - | - | - | - | - |
| Voltage Dropout (Max) | 0.6V @ 300mA | 0.6V @ 300mA | 0.6V @ 300mA | 0.6V @ 300mA | 0.6V @ 150mA | 0.6V @ 300mA |
| Current - Output | 300mA | 300mA | 300mA | 300mA | 150mA | 300mA |
| Current - Quiescent (Iq) | 0.5 µA | 0.5 µA | 0.5 µA | 0.5 µA | 0.5 µA | 0.5 µA |
| Current - Supply (Max) | 220 µA | 220 µA | 220 µA | 220 µA | 110 µA | 220 µA |
| PSRR | 50dB (1kHz) | 50dB (1kHz) | 50dB (1kHz) | 50dB (1kHz) | 50dB (1kHz) | 50dB (1kHz) |
| Control Features | Enable | Enable | Enable | Enable | Enable | Enable |
| Protection Features | Over Current | Over Current | Over Current | Over Current | Over Current | Over Current |
| Operating Temperature | -40°C ~ 85°C (TJ) | -40°C ~ 85°C (TJ) | -40°C ~ 85°C (TJ) | -40°C ~ 85°C (TJ) | -40°C ~ 85°C (TJ) | -40°C ~ 85°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-70, SOT-323 | 5-TSSOP, SC-70-5, SOT-353 | SC-70, SOT-323 | SC-70, SOT-323 | SC-70, SOT-323 | SC-70, SOT-323 |
| Supplier Device Package | SC-70-3 | SC-70-5 | SC-70-3 | SC-70-3 | SC-70-3 | SC-70-3 |
