Please send RFQ , we will respond immediately.

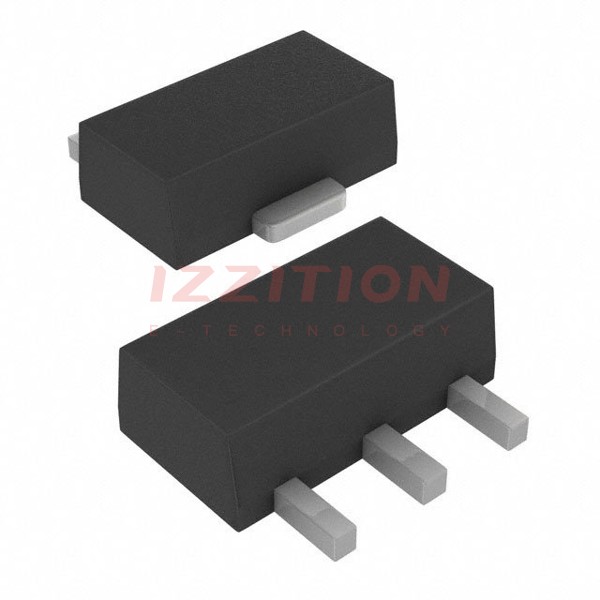

| Part Number | MCP1703RT-5002E/MB | MCP1703T-5002E/MB | MCP1703AT-5002E/MB |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 |
| Voltage - Input (Max) | 16V | 16V | 16V |
| Voltage - Output (Min/Fixed) | 5V | 5V | 5V |
| Voltage - Output (Max) | - | - | - |
| Voltage Dropout (Max) | 0.65V @ 250mA | 0.65V @ 250mA | 0.65V @ 250mA |
| Current - Output | 250mA | 250mA | 250mA |
| Current - Quiescent (Iq) | 5 µA | 5 µA | 5 µA |
| Current - Supply (Max) | - | - | - |
| PSRR | 35dB (100Hz) | 44dB (100Hz) | 35dB (100Hz) |
| Control Features | - | - | - |
| Protection Features | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-243AA | TO-243AA | TO-243AA |
| Supplier Device Package | SOT-89-3 | SOT-89-3 | SOT-89-3 |
