| Part Number | MCP14A1202T-E/MNYVAO | MCP14A1201T-E/MNYVAO |
|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology |
| Product Status | Active | Active |
| Driven Configuration | Low-Side | Low-Side |
| Channel Type | Single | Single |
| Number of Drivers | 1 | 1 |
| Gate Type | IGBT, N-Channel, P-Channel MOSFET | IGBT, N-Channel, P-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 18V | 4.5V ~ 18V |
| Logic Voltage - VIL, VIH | 0.8V, 2V | 0.8V, 2V |
| Current - Peak Output (Source, Sink) | 12A, 12A | 12A, 12A |
| Input Type | Non-Inverting | Inverting |
| High Side Voltage - Max (Bootstrap) | - | - |
| Rise / Fall Time (Typ) | 25ns, 25ns | 25ns, 25ns |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |

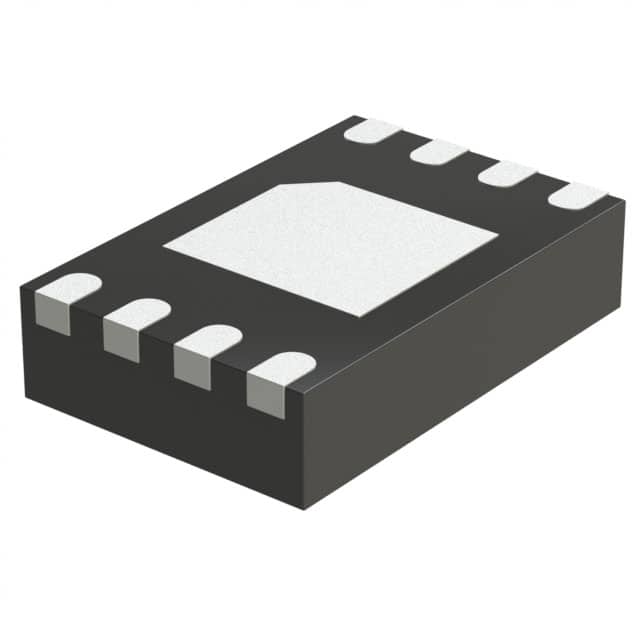

| Package / Case | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-TDFN (2x3) | 8-TDFN (2x3) |
