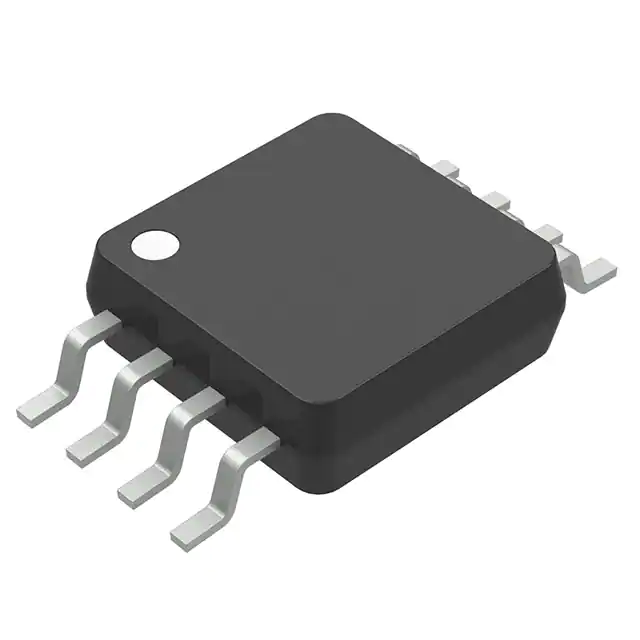

| Part Number | MCP14A0304-E/MS | MCP14A0304T-E/MS | MCP14A0305-E/MS | MCP14A0301-E/MS | MCP14A0302-E/MS | MCP14A0303-E/MS |
|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active |
| Driven Configuration | High-Side or Low-Side | High-Side or Low-Side | Half-Bridge | High-Side or Low-Side | High-Side or Low-Side | High-Side or Low-Side |
| Channel Type | Independent | Independent | Independent | Single | Single | Independent |
| Number of Drivers | 2 | 2 | 2 | 1 | 1 | 2 |
| Gate Type | IGBT | IGBT | IGBT | IGBT | IGBT | IGBT |
| Voltage - Supply | 4.5V ~ 18V | 4.5V ~ 18V | 4.5V ~ 18V | 4.5V ~ 18V | 4.5V ~ 18V | 4.5V ~ 18V |
| Logic Voltage - VIL, VIH | 0.8V, 2V | 0.8V, 2V | 0.8V, 2V | 0.8V, 2V | 0.8V, 2V | 0.8V, 2V |
| Current - Peak Output (Source, Sink) | 3A, 3A | 3A, 3A | 3A, 3A | 3A, 3A | 3A, 3A | 3A, 3A |
| Input Type | Non-Inverting | Non-Inverting | Inverting, Non-Inverting | Inverting, Non-Inverting | Inverting, Non-Inverting | Inverting |
| High Side Voltage - Max (Bootstrap) | - | - | - | - | - | - |
| Rise / Fall Time (Typ) | 12ns, 12ns | 12ns, 12ns | 12ns, 12ns | 13ns, 12ns | 13ns, 12ns | 12ns, 12ns |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-MSOP | 8-MSOP | 8-MSOP | 8-MSOP | 8-MSOP | 8-MSOP |
