Microchip Technology-MASMCG5.0CA/TR - TVS - Diodes Product Specifications and Latest Quotes

Type:	Zener
Unidirectional Channels:	-
Bidirectional Channels:	1
Voltage - Reverse Standoff (Typ):	5V
Voltage - Breakdown (Min):	6.4V
Voltage - Clamping (Max) @ Ipp:	9.2V
Current - Peak Pulse (10/1000µs):	163A
Power - Peak Pulse:	1500W (1.5kW)
Power Line Protection:	No
Applications:	General Purpose
Capacitance @ Frequency:	-
Operating Temperature:	-65°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	DO-215AB, SMC Gull Wing
Supplier Device Package:	SMCG (DO-215AB)

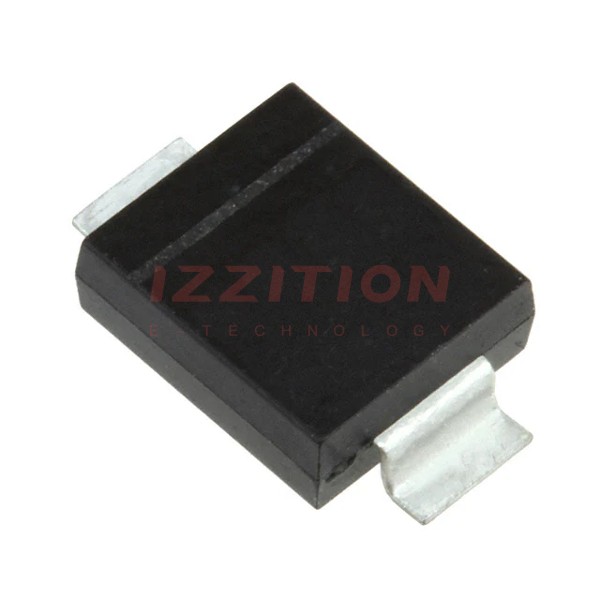

Microchip Technology MASMCG5.0CA/TR
