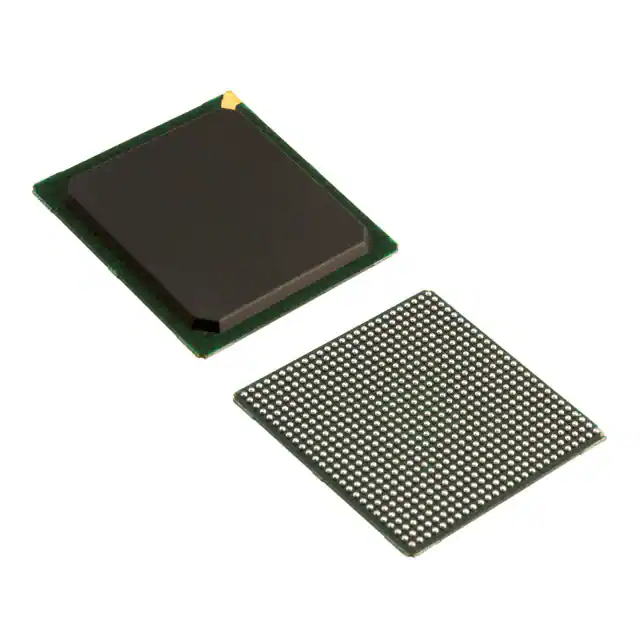

| Part Number | M2S060T-1FGG676I | M2S060T-FGG676I | M2S060TS-1FGG676I | M2S090T-1FGG676I | M2S060-1FGG676I | M2S060T-1FG676I | M2S060T-1FGG676 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Architecture | MCU, FPGA | MCU, FPGA | MCU, FPGA | MCU, FPGA | MCU, FPGA | MCU, FPGA | MCU, FPGA |
| Core Processor | ARM® Cortex®-M3 | ARM® Cortex®-M3 | ARM® Cortex®-M3 | ARM® Cortex®-M3 | ARM® Cortex®-M3 | ARM® Cortex®-M3 | ARM® Cortex®-M3 |
| Flash Size | 256KB | 256KB | 256KB | 512KB | 256KB | 256KB | 256KB |
| RAM Size | 64KB | 64KB | 64KB | 64KB | 64KB | 64KB | 64KB |
| Peripherals | DDR, PCIe, SERDES | DDR, PCIe, SERDES | DDR, PCIe, SERDES | DDR, PCIe, SERDES | DDR, PCIe, SERDES | DDR, PCIe, SERDES | DDR, PCIe, SERDES |
| Connectivity | CANbus, Ethernet, I²C, SPI, UART/USART, USB | CANbus, Ethernet, I²C, SPI, UART/USART, USB | CANbus, Ethernet, I²C, SPI, UART/USART, USB | CANbus, Ethernet, I²C, SPI, UART/USART, USB | CANbus, Ethernet, I²C, SPI, UART/USART, USB | CANbus, Ethernet, I²C, SPI, UART/USART, USB | CANbus, Ethernet, I²C, SPI, UART/USART, USB |
| Speed | 166MHz | 166MHz | 166MHz | 166MHz | 166MHz | 166MHz | 166MHz |
| Primary Attributes | FPGA - 60K Logic Modules | FPGA - 60K Logic Modules | FPGA - 60K Logic Modules | FPGA - 90K Logic Modules | FPGA - 60K Logic Modules | FPGA - 60K Logic Modules | FPGA - 60K Logic Modules |
| Operating Temperature | -40°C ~ 100°C (TJ) | -40°C ~ 100°C (TJ) | -40°C ~ 100°C (TJ) | -40°C ~ 100°C (TJ) | -40°C ~ 100°C (TJ) | -40°C ~ 100°C (TJ) | 0°C ~ 85°C (TJ) |
| Package / Case | 676-BGA | 676-BGA | 676-BGA | 676-BGA | 676-BGA | 676-BGA | 676-BGA |
| Supplier Device Package | 676-FBGA (27x27) | 676-FBGA (27x27) | 676-FBGA (27x27) | 676-FBGA (27x27) | 676-FBGA (27x27) | 676-FBGA (27x27) | 676-FBGA (27x27) |
