Please send RFQ , we will respond immediately.

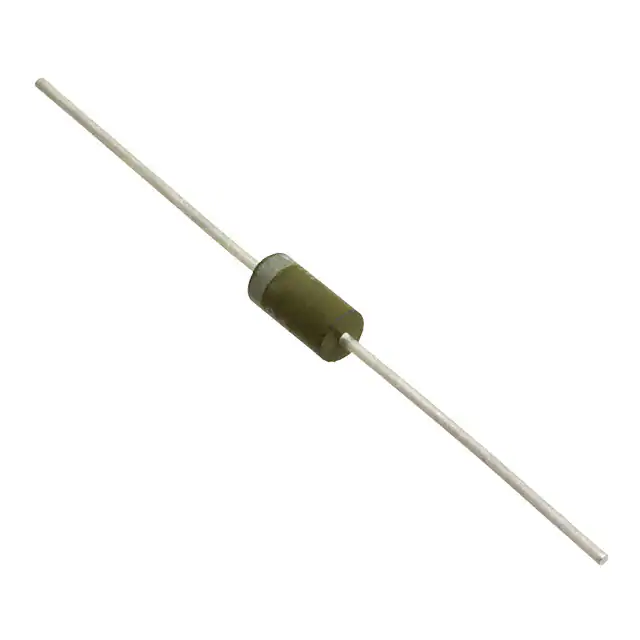

| Part Number | M1.5KE120CA | M1.5KE220CA | M1.5KE120A |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | MDE Semiconductor Inc |
| Product Status | Active | Active | Active |
| Type | Zener | Zener | Zener |
| Unidirectional Channels | - | - | 1 |
| Bidirectional Channels | 1 | 1 | - |
| Voltage - Reverse Standoff (Typ) | 102V | 185V | 102V |
| Voltage - Breakdown (Min) | 114V | 209V | 114V |
| Voltage - Clamping (Max) @ Ipp | 165V | 328V | 165V |
| Current - Peak Pulse (10/1000µs) | 9.1A | 4.6A | 9.2A |
| Power - Peak Pulse | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) |
| Power Line Protection | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-201AA, DO-27, Axial | DO-201AA, DO-27, Axial | DO-201AA, DO-27, Axial |
| Supplier Device Package | CASE-1 | CASE-1 | DO-201 |
