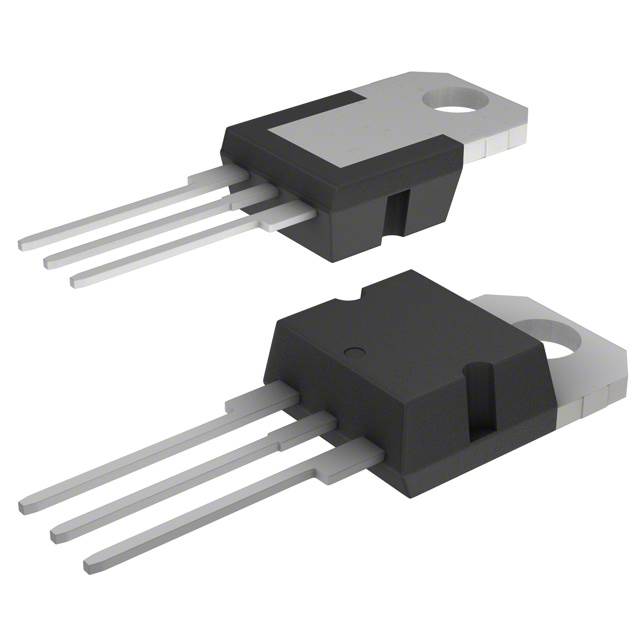

| Part Number | LR645N5-G | LR645N8-G | LR645N3-G |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 |
| Voltage - Input (Max) | 450V | 450V | 450V |
| Voltage - Output (Min/Fixed) | 8V | 8V | 8V |
| Voltage - Output (Max) | 12V | 12V | 12V |
| Voltage Dropout (Max) | - | - | - |
| Current - Output | 3mA | 3mA | 3mA |
| Current - Quiescent (Iq) | 150 µA | 150 µA | 150 µA |
| Current - Supply (Max) | - | - | - |
| PSRR | 60dB (120Hz) | 60dB (120Hz) | 60dB (120Hz) |
| Control Features | - | - | - |
| Protection Features | - | - | - |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Mounting Type | Through Hole | Surface Mount | Through Hole |
| Package / Case | TO-220-3 | TO-243AA | TO-226-3, TO-92-3 (TO-226AA) |
| Supplier Device Package | TO-220-3 | TO-243AA (SOT-89) | TO-92-3 |
