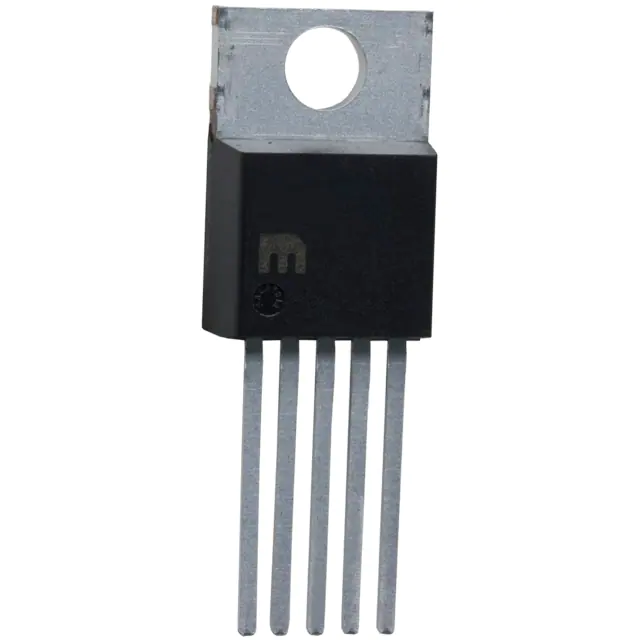

| Part Number | LM2575-3.3WT | LM2575-3.3WU | LM2575-3.3BT |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Obsolete |
| Function | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck |
| Output Type | Fixed | Fixed | Fixed |
| Number of Outputs | 1 | 1 | 1 |
| Voltage - Input (Min) | 4V | 4V | 4V |
| Voltage - Input (Max) | 40V | 40V | 40V |
| Voltage - Output (Min/Fixed) | 3.3V | 3.3V | 3.3V |
| Voltage - Output (Max) | - | - | - |
| Current - Output | 1A | 1A | 1A |
| Frequency - Switching | 52kHz | 52kHz | 52kHz |
| Synchronous Rectifier | No | No | No |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Through Hole | Surface Mount | Through Hole |
| Package / Case | TO-220-5 | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA | TO-220-5 |
| Supplier Device Package | TO-220-5 | TO-263-5 | TO-220-5 |
