Microchip Technology-LC60 - TVS - Diodes Product Specifications and Latest Quotes

Type:	Zener
Unidirectional Channels:	1
Bidirectional Channels:	-
Voltage - Reverse Standoff (Typ):	60V
Voltage - Breakdown (Min):	66.7V
Voltage - Clamping (Max) @ Ipp:	107V
Current - Peak Pulse (10/1000µs):	14A
Power - Peak Pulse:	1500W (1.5kW)
Power Line Protection:	No
Applications:	General Purpose
Capacitance @ Frequency:	90pF @ 1MHz
Operating Temperature:	-65°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Package / Case:	DO-13
Supplier Device Package:	DO-202AA (DO-13)

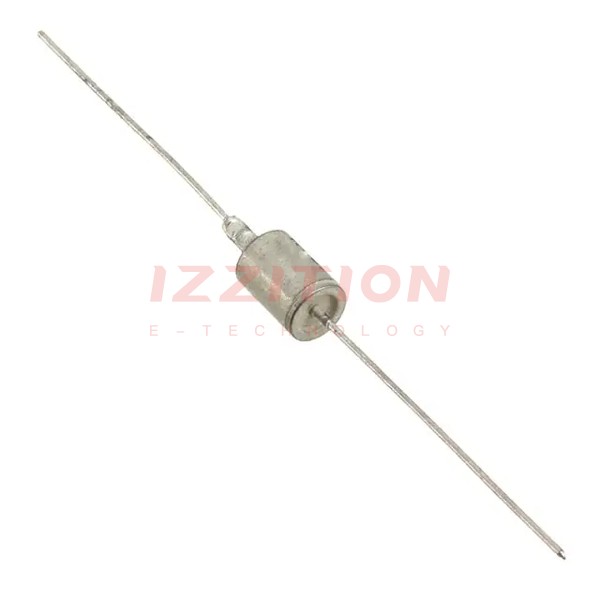

Microchip Technology LC60
