| Part Number | JANTXV2N6648 | JANTXV2N6649 | JANTXV2N6678 |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active |
| Transistor Type | PNP - Darlington | PNP - Darlington | NPN |
| Current - Collector (Ic) (Max) | 10 A | 10 A | 15 A |
| Voltage - Collector Emitter Breakdown (Max) | 40 V | 60 V | 400 V |
| Vce Saturation (Max) @ Ib, Ic | 3V @ 100mA, 10A | 3V @ 100mA, 10A | 1V @ 3A, 15A |
| Current - Collector Cutoff (Max) | 1mA (ICBO) | 1mA (ICBO) | 1mA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 1000 @ 5A, 3V | 1000 @ 5A, 3V | 15 @ 1A, 3V |
| Power - Max | 5 W | 5 W | 6 W |
| Frequency - Transition | - | - | - |
| Operating Temperature | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 200°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |

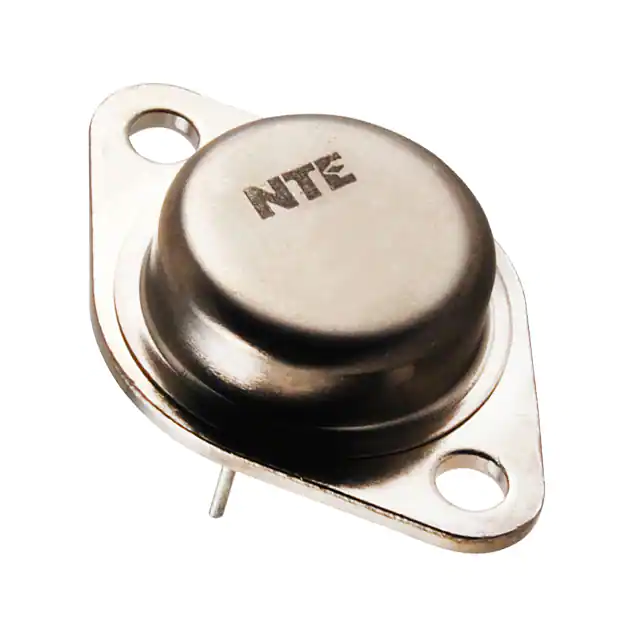

| Package / Case | TO-204AA, TO-3 | TO-204AA, TO-3 | TO-204AA, TO-3 |
| Supplier Device Package | TO-204AA (TO-3) | TO-204AA (TO-3) | TO-3 |
