| Part Number | JANTXV2N6212 | JANTXV2N6213 | JANTXV2N6211 |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active |
| Transistor Type | PNP | PNP | PNP |
| Current - Collector (Ic) (Max) | 5 mA | 5 mA | 5 mA |
| Voltage - Collector Emitter Breakdown (Max) | 300 V | 350 V | 225 V |
| Vce Saturation (Max) @ Ib, Ic | 1.6V @ 125mA, 1A | 2V @ 125mA, 1A | 1.4V @ 125mA, 1A |
| Current - Collector Cutoff (Max) | 5mA | 5mA | 5mA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 30 @ 1A, 5V | 30 @ 1A, 5V | 30 @ 1A, 5V |
| Power - Max | 3 W | 3 W | 3 W |
| Frequency - Transition | - | - | - |
| Operating Temperature | -55°C ~ 200°C (TA) | -55°C ~ 200°C (TA) | -55°C ~ 200°C (TA) |
| Mounting Type | Through Hole | Through Hole | Through Hole |

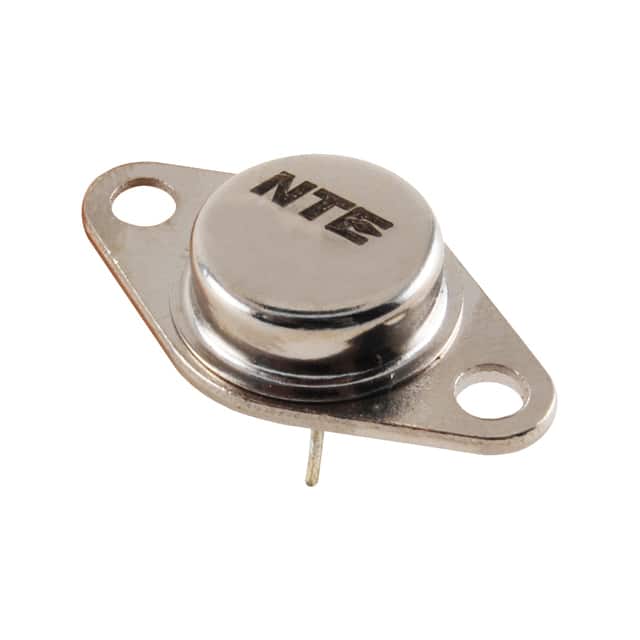

| Package / Case | TO-213AA, TO-66-2 | TO-213AA, TO-66-2 | TO-213AA, TO-66-2 |
| Supplier Device Package | TO-66 (TO-213AA) | TO-66 (TO-213AA) | TO-66 (TO-213AA) |
