| Part Number | JANTXV2N5339 | JANTXV2N5039 |
|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology |
| Product Status | Active | Active |
| Transistor Type | NPN | NPN |
| Current - Collector (Ic) (Max) | 5 A | 1 µA |
| Voltage - Collector Emitter Breakdown (Max) | 100 V | 75 V |
| Vce Saturation (Max) @ Ib, Ic | 1.2V @ 500mA, 5A | 2.5V @ 5A, 20A |
| Current - Collector Cutoff (Max) | 100µA | 1µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 60 @ 2A, 2V | 30 @ 2A, 5V |
| Power - Max | 1 W | 140 W |
| Frequency - Transition | - | - |
| Operating Temperature | -65°C ~ 200°C (TJ) | -65°C ~ 200°C (TA) |
| Mounting Type | Surface Mount | Through Hole |

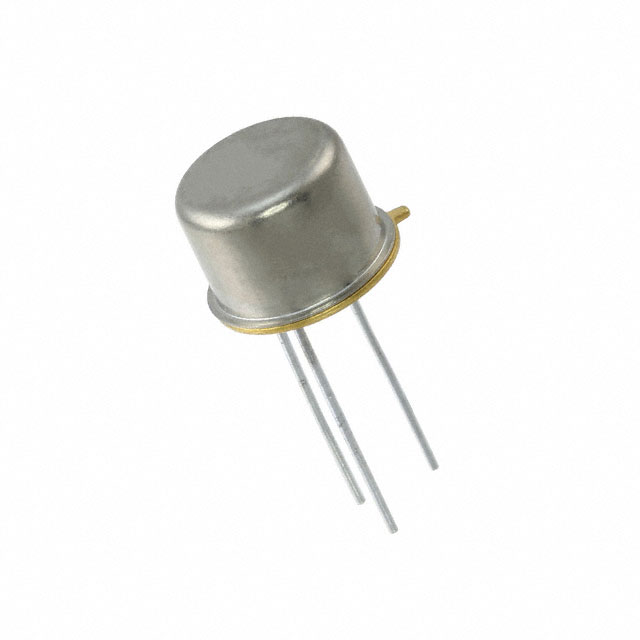

| Package / Case | TO-205AD, TO-39-3 Metal Can | TO-204AA, TO-3 |
| Supplier Device Package | TO-39 (TO-205AD) | TO-3 |
