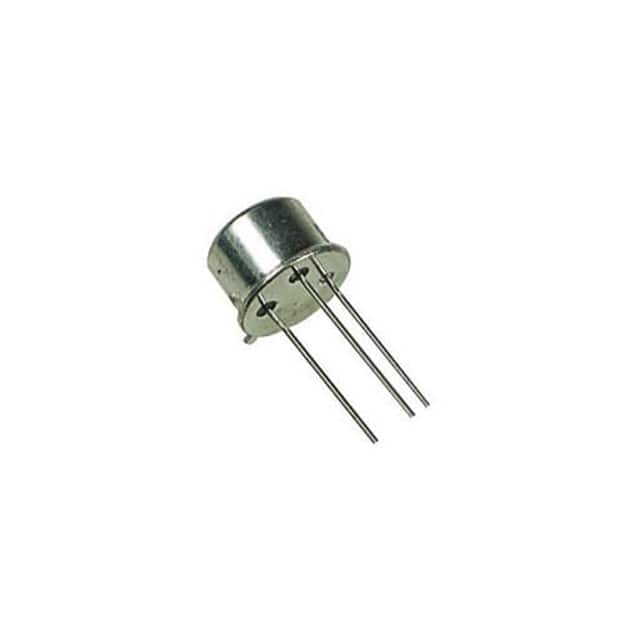

Microchip Technology-JANTXV2N3762 - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Part Number	JANTXV2N3762	JANTXV2N3767	JANTXV2N3792	JANTXV2N3772	JANTXV2N3763	JANTXV2N3762L
Manufacturer	Microchip Technology	MACOM Technology Solutions	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology
Product Status	Active	Discontinued at Digi-Key	Active	Active	Active	Active
Transistor Type	PNP	NPN	PNP	NPN	PNP	PNP
Current - Collector (Ic) (Max)	1.5 A	4 A	10 A	5 mA	1.5 A	1.5 A
Voltage - Collector Emitter Breakdown (Max)	40 V	80 V	80 V	60 V	60 V	40 V
Vce Saturation (Max) @ Ib, Ic	900mV @ 100mA, 1A	2.5V @ 100mA, 1A	2.5V @ 2A, 10A	4V @ 4A, 20A	900mV @ 100mA, 1A	900mV @ 100mA, 1A
Current - Collector Cutoff (Max)	10µA (ICBO)	500µA	5mA	5mA	10µA (ICBO)	100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	30 @ 1A, 1.5V	40 @ 500mA, 5V	50 @ 1A, 2V	15 @ 10A, 4V	20 @ 1A, 1.5V	40 @ 500mA, 1V
Power - Max	1 W	25 W	5 W	6 W	1 W	1 W
Frequency - Transition	-	-	-	-	-	-
Operating Temperature	-55°C ~ 200°C (TJ)	-65°C ~ 200°C (TJ)	-65°C ~ 200°C (TJ)	-65°C ~ 200°C (TJ)	-55°C ~ 200°C (TJ)	-55°C ~ 200°C (TJ)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	TO-205AD, TO-39-3 Metal Can	TO-213AA, TO-66-2	TO-204AA, TO-3	TO-204AA, TO-3	TO-205AD, TO-39-3 Metal Can	TO-205AA, TO-5-3 Metal Can
Supplier Device Package	TO-39 (TO-205AD)	TO-66	TO-3	TO-3	TO-39 (TO-205AD)	TO-5

Transistor Type:	PNP
Current - Collector (Ic) (Max):	1.5 A
Voltage - Collector Emitter Breakdown (Max):	40 V
Vce Saturation (Max) @ Ib, Ic:	900mV @ 100mA, 1A
Current - Collector Cutoff (Max):	10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:	30 @ 1A, 1.5V
Power - Max:	1 W
Frequency - Transition:	-
Operating Temperature:	-55°C ~ 200°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-205AD, TO-39-3 Metal Can
Supplier Device Package:	TO-39 (TO-205AD)

Microchip Technology JANTXV2N3762
