Microchip Technology-JANTXV2N3741 - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Part Number	JANTXV2N3741	JANTXV2N3771	JANTXV2N3743	JANTXV2N3441
Manufacturer	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology
Product Status	Active	Active	Active	Active
Transistor Type	PNP	NPN	PNP	NPN
Current - Collector (Ic) (Max)	4 A	5 mA	200 mA	3 A
Voltage - Collector Emitter Breakdown (Max)	80 V	40 V	300 V	140 V
Vce Saturation (Max) @ Ib, Ic	600mV @ 125mA, 1A	4V @ 6A, 30A	1.2V @ 3mA, 30mA	1V @ 50mA, 500mA
Current - Collector Cutoff (Max)	10µA	5mA	250nA (ICBO)	-
DC Current Gain (hFE) (Min) @ Ic, Vce	30 @ 250mA, 1V	15 @ 15A, 4V	50 @ 30mA, 10V	25 @ 500mA, 4V
Power - Max	25 W	6 W	1 W	3 W
Frequency - Transition	-	-	-	-
Operating Temperature	-65°C ~ 200°C (TJ)	-65°C ~ 200°C (TJ)	-65°C ~ 200°C (TJ)	-65°C ~ 200°C (TJ)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	TO-213AA, TO-66-2	TO-204AA, TO-3	TO-205AD, TO-39-3 Metal Can	TO-213AA, TO-66-2
Supplier Device Package	TO-66 (TO-213AA)	TO-3	TO-39 (TO-205AD)	TO-66 (TO-213AA)

Transistor Type:	PNP
Current - Collector (Ic) (Max):	4 A
Voltage - Collector Emitter Breakdown (Max):	80 V
Vce Saturation (Max) @ Ib, Ic:	600mV @ 125mA, 1A
Current - Collector Cutoff (Max):	10µA
DC Current Gain (hFE) (Min) @ Ic, Vce:	30 @ 250mA, 1V
Power - Max:	25 W
Frequency - Transition:	-
Operating Temperature:	-65°C ~ 200°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-213AA, TO-66-2
Supplier Device Package:	TO-66 (TO-213AA)

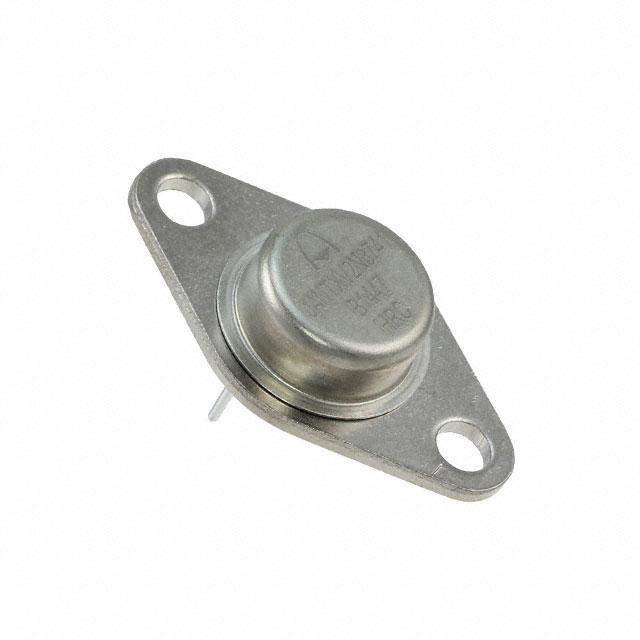

Microchip Technology JANTXV2N3741
