Please send RFQ , we will respond immediately.
| Part Number | JANTXV2N2218A | JANTXV2N2219A | JANTXV2N2218 |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Discontinued at Digi-Key | Active | Active |
| Transistor Type | NPN | NPN | NPN |
| Current - Collector (Ic) (Max) | 800 mA | 800 mA | 800 mA |
| Voltage - Collector Emitter Breakdown (Max) | 50 V | 50 V | 30 V |
| Vce Saturation (Max) @ Ib, Ic | 1V @ 50mA, 500mA | 1V @ 50mA, 500mA | 1.6V @ 50mA, 500mA |
| Current - Collector Cutoff (Max) | 10nA | 10nA | 10nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 40 @ 150mA, 10V | 100 @ 150mA, 10V | 40 @ 150mA, 10V |
| Power - Max | 800 mW | 800 mW | 800 mW |
| Frequency - Transition | - | - | - |
| Operating Temperature | -55°C ~ 200°C (TJ) | -55°C ~ 200°C (TJ) | -55°C ~ 200°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |

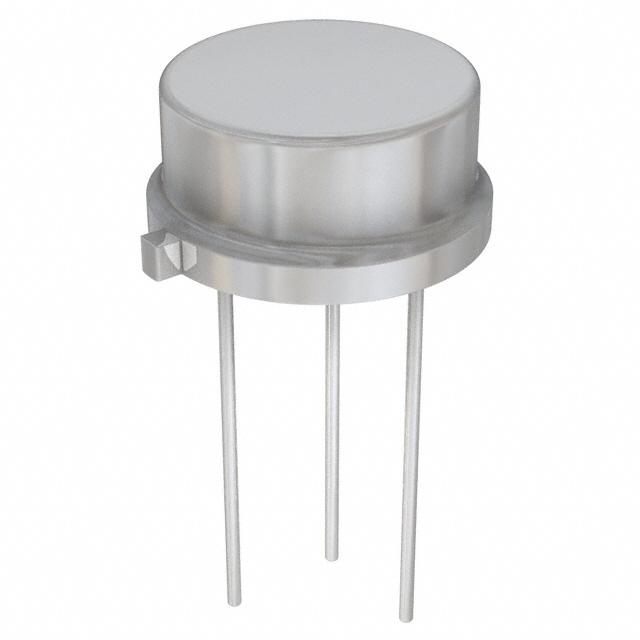

| Package / Case | TO-205AD, TO-39-3 Metal Can | TO-205AD, TO-39-3 Metal Can | TO-205AD, TO-39-3 Metal Can |
| Supplier Device Package | TO-39 (TO-205AD) | TO-205AD | TO-39 (TO-205AD) |
