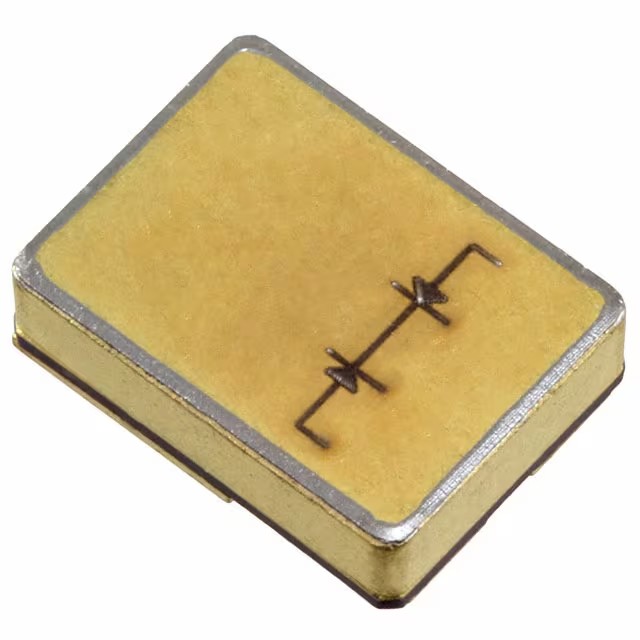

Microchip Technology-JANTXV1N6843CCU3/TR - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	100 V
Current - Average Rectified (Io):	15A
Voltage - Forward (Vf) (Max) @ If:	1.27 V @ 30 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	10 µA @ 100 V
Capacitance @ Vr, F:	275pF @ 5V, 1MHz
Mounting Type:	Surface Mount
Package / Case:	3-SMD, Flat Lead
Supplier Device Package:	U3
Operating Temperature - Junction:	-65°C ~ 150°C

Microchip Technology JANTXV1N6843CCU3/TR
