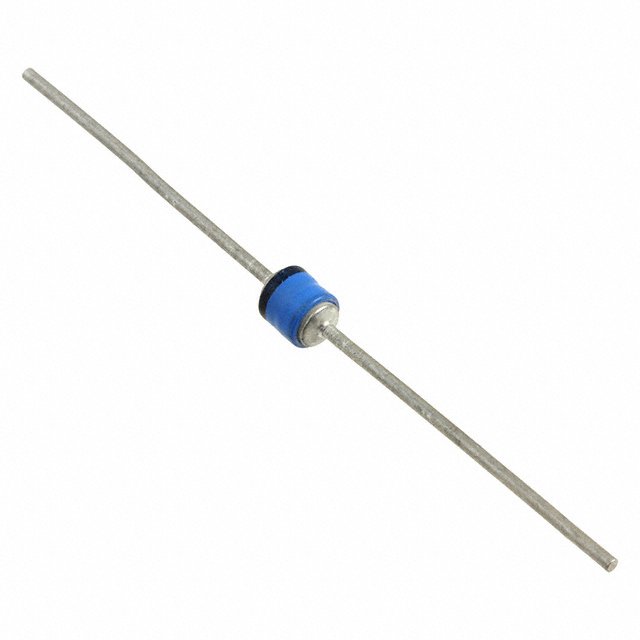

| Part Number | JANTXV1N6472 | JANTXV1N6473 | JANTXV1N6474 | JANTXV1N6475 | JANTXV1N6476 | JANTXV1N6470 | JANTXV1N6471 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Semtech Corporation | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Discontinued at Digi-Key | Discontinued at Digi-Key | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 15V | 24V | 30.5V | 40.3V | 51.6V | 6V | 12V |
| Voltage - Breakdown (Min) | 16.4V | 27V | 33V | 43.7V | 54V | 6.5V | 13.6V |
| Voltage - Clamping (Max) @ Ipp | 26.5V | 41.4V | 47.5V | 63.5V | 78.5V | 11V | 22.6V |
| Current - Peak Pulse (10/1000µs) | 322A (8/20µs) | 207A (8/20µs) | 181A (8/20µs) | 135A (8/20µs) | 19A | 775A (8/20µs) | 374A (8/20µs) |
| Power - Peak Pulse | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) |
| Power Line Protection | No | No | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | G, Axial | G, Axial | G, Axial | G, Axial | Axial | G, Axial | G, Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
