Microchip Technology-JANTXV1N6348US - Diodes - Zener - Single Product Specifications and Latest Quotes

Part Number	JANTXV1N6348US	JANTXV1N6349US	JANTXV1N6328US	JANTXV1N6338US	JANTXV1N6343US	JANTXV1N6344US	JANTXV1N6347US
Manufacturer	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology
Product Status	Active	Discontinued at Digi-Key	Discontinued at Digi-Key	Active	Discontinued at Digi-Key	Discontinued at Digi-Key	Active
Voltage - Zener (Nom) (Vz)	100 V	110 V	15 V	39 V	62 V	68 V	91 V
Tolerance	±5%	±5%	±5%	±5%	±5%	±5%	±5%
Power - Max	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW
Impedance (Max) (Zzt)	340 Ohms	500 Ohms	10 Ohms	55 Ohms	125 Ohms	155 Ohms	270 Ohms
Current - Reverse Leakage @ Vr	50 nA @ 76 V	50 nA @ 84 V	50 nA @ 11 V	50 nA @ 30 V	50 nA @ 47 V	50 nA @ 52 V	50 nA @ 69 V
Voltage - Forward (Vf) (Max) @ If	1.4 V @ 1 A	1.4 V @ 1 A	1.4 V @ 1 A	1.4 V @ 1 A	1.4 V @ 1 A	1.4 V @ 1 A	1.4 V @ 1 A
Operating Temperature	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	SQ-MELF, B	SQ-MELF, B	SQ-MELF, B	SQ-MELF, B	SQ-MELF, B	SQ-MELF, B	SQ-MELF, B
Supplier Device Package	B, SQ-MELF	B, SQ-MELF	B, SQ-MELF	B, SQ-MELF	B, SQ-MELF	B, SQ-MELF	B, SQ-MELF

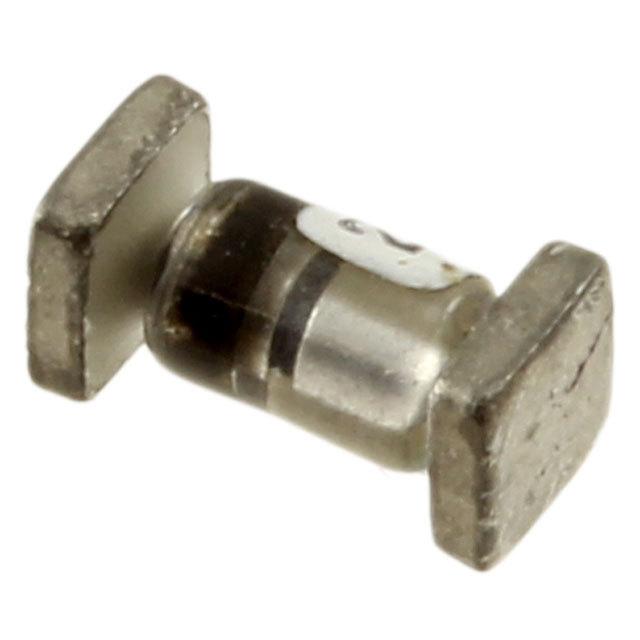

Microchip Technology JANTXV1N6348US
