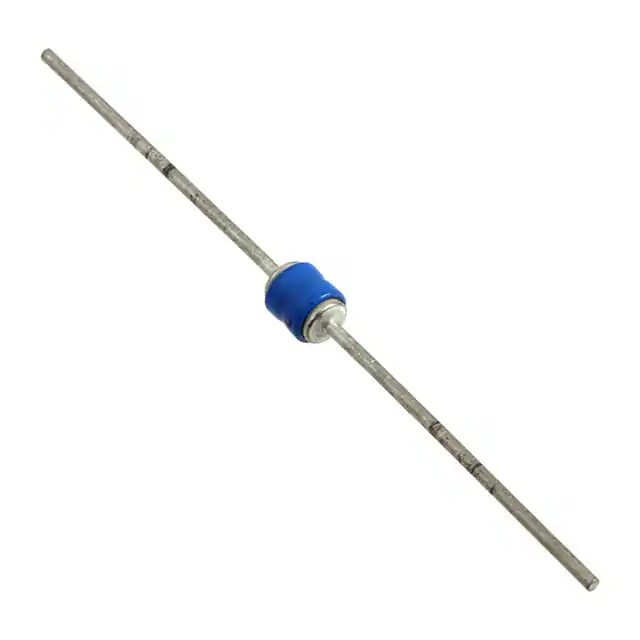

| Part Number | JANTXV1N6166A | JANTXV1N6167A | JANTXV1N6169A | JANTXV1N6146A | JANTXV1N6160A | JANTXV1N6161A | JANTXV1N6162A | JANTXV1N6163A | JANTXV1N6164A | JANTXV1N6165A |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Discontinued at Digi-Key | Active | Discontinued at Digi-Key | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - | - | - | - | - | - | - | - |
| Bidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Reverse Standoff (Typ) | 76V | 86.6V | 98.8V | 11.4V | 42.6V | 47.1V | 51.7V | 56V | 62.2V | 69.2V |
| Voltage - Breakdown (Min) | 95V | 104.5V | 123.5V | 14.25V | 53.2V | 58.9V | 64.6V | 71.3V | 77.9V | 86.5V |
| Voltage - Clamping (Max) @ Ipp | 137.6V | 151.3V | 178.8V | 21V | 77V | 85.3V | 97.1V | 103.1V | 112.8V | 125.1V |
| Current - Peak Pulse (10/1000µs) | 10.9A | 9.9A | 8.4A | 71.4A | 19.5A | 17.6A | 15.4A | 14.5A | 13.3A | 12A |
| Power - Peak Pulse | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) |
| Power Line Protection | No | No | No | No | No | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | G, Axial | G, Axial | G, Axial | G, Axial | G, Axial | G, Axial | G, Axial | G, Axial | G, Axial | G, Axial |
| Supplier Device Package | C, Axial | C, Axial | C, Axial | C, Axial | C, Axial | C, Axial | C, Axial | C, Axial | C, Axial | C, Axial |
