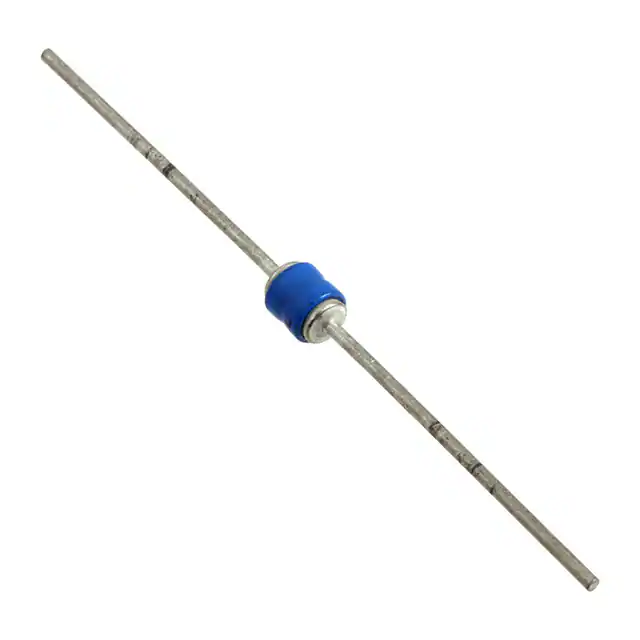

| Part Number | JANTXV1N6152A | JANTXV1N6154A | JANTXV1N6158A | JANTXV1N6155A | JANTXV1N6157A | JANTXV1N6162A | JANTXV1N6122A | JANTXV1N6151A |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - | - | - | - | - | - |
| Bidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Reverse Standoff (Typ) | 20.6V | 25.1V | 35.8V | 27.4V | 32.7V | 51.7V | 35.8V | 18.2V |
| Voltage - Breakdown (Min) | 25.7V | 31.4V | 44.7V | 34.2V | 40.9V | 64.6V | 44.7V | 22.8V |
| Voltage - Clamping (Max) @ Ipp | 37.4V | 45.7V | 64.6V | 49.9V | 59.1V | 97.1V | 64.6V | 33.3V |
| Current - Peak Pulse (10/1000µs) | 40.1A | 32.8A | 23.2A | 30.1A | 25.4A | 15.4A | 7.7A | 45A |
| Power - Peak Pulse | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 500W | 1500W (1.5kW) |
| Power Line Protection | No | No | No | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | G, Axial | G, Axial | G, Axial | G, Axial | G, Axial | G, Axial | B, Axial | G, Axial |
| Supplier Device Package | C, Axial | C, Axial | C, Axial | C, Axial | C, Axial | C, Axial | Axial | C, Axial |
