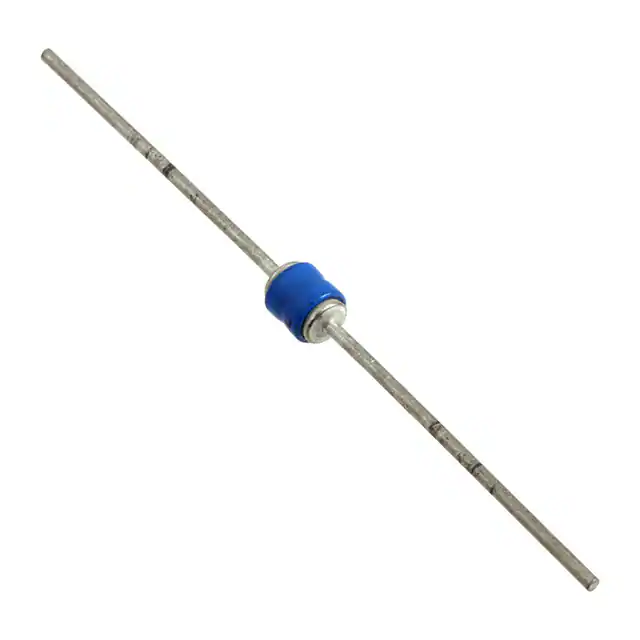

| Part Number | JANTXV1N6151A | JANTXV1N6154A | JANTXV1N6158A | JANTXV1N6161A | JANTXV1N6152A | JANTXV1N6171A | JANTXV1N6155A | JANTXV1N6157A |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Discontinued at Digi-Key | Discontinued at Digi-Key |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - | - | - | - | - | - |
| Bidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Reverse Standoff (Typ) | 18.2V | 25.1V | 35.8V | 47.1V | 20.6V | 121.6V | 27.4V | 32.7V |
| Voltage - Breakdown (Min) | 22.8V | 31.4V | 44.7V | 58.9V | 25.7V | 152V | 34.2V | 40.9V |
| Voltage - Clamping (Max) @ Ipp | 33.3V | 45.7V | 64.6V | 85.3V | 37.4V | 218.4V | 49.9V | 59.1V |
| Current - Peak Pulse (10/1000µs) | 45A | 32.8A | 23.2A | 17.6A | 40.1A | 6.9A | 30.1A | 25.4A |
| Power - Peak Pulse | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) |
| Power Line Protection | No | No | No | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | G, Axial | G, Axial | G, Axial | G, Axial | G, Axial | G, Axial | G, Axial | G, Axial |
| Supplier Device Package | C, Axial | C, Axial | C, Axial | C, Axial | C, Axial | C, Axial | C, Axial | C, Axial |
