Please send RFQ , we will respond immediately.

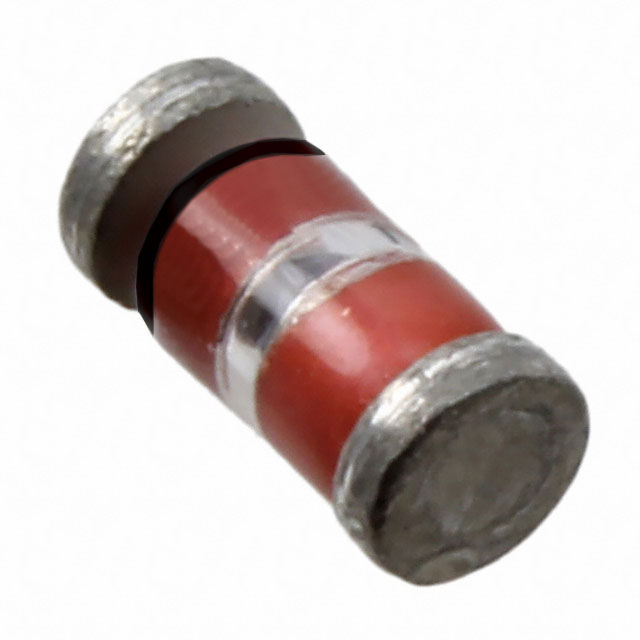

| Part Number | JANTXV1N5297UR-1 | JANTXV1N5299UR-1 | JANTXV1N5287UR-1 | JANTXV1N5290UR-1 | JANTXV1N5291UR-1 | JANTXV1N5292UR-1 | JANTXV1N5293UR-1 | JANTXV1N5294UR-1 | JANTXV1N5295UR-1 | JANTXV1N5296UR-1 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Discontinued at Digi-Key | Active | Active | Discontinued at Digi-Key | Discontinued at Digi-Key | Active | Active | Discontinued at Digi-Key | Active | Active |
| Voltage - Anode - Cathode (Vak)(Max) | 100V | 100V | 100V | 100V | 100V | 100V | 100V | 100V | 100V | 100V |
| Regulator Current (Max) | 1.1mA | 1.32mA | 363µA | 517µA | 616µA | 682µA | 748µA | 825µA | 902µA | 1.001mA |
| Voltage - Limiting (Max) | 1.35V | 1.45V | 1V | 1.05V | 1.1V | 1.13V | 1.15V | 1.2V | 1.25V | 1.29V |
| Power - Max | 500mW | 500mW | 500mW | 500mW | 500mW | 500mW | 500mW | 500mW | 500mW | 500mW |
| Applications | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-213AB, MELF (Glass) | DO-213AB, MELF (Glass) | DO-213AB, MELF (Glass) | DO-213AB, MELF (Glass) | DO-213AB, MELF (Glass) | DO-213AB, MELF (Glass) | DO-213AB, MELF (Glass) | DO-213AB, MELF (Glass) | DO-213AB, MELF (Glass) | DO-213AB, MELF (Glass) |
| Supplier Device Package | DO-213AB (MELF, LL41) | DO-213AB (MELF, LL41) | DO-213AB (MELF, LL41) | DO-213AB (MELF, LL41) | DO-213AB (MELF, LL41) | DO-213AB (MELF, LL41) | DO-213AB (MELF, LL41) | DO-213AB (MELF, LL41) | DO-213AB (MELF, LL41) | DO-213AB (MELF, LL41) |
