Microchip Technology-JANTXV1N4938UR-1/TR - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	175 V
Current - Average Rectified (Io):	100mA
Voltage - Forward (Vf) (Max) @ If:	1 V @ 100 mA
Speed:	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):	50 ns
Current - Reverse Leakage @ Vr:	-
Capacitance @ Vr, F:	-
Mounting Type:	Surface Mount
Package / Case:	DO-213AA
Supplier Device Package:	DO-213AA
Operating Temperature - Junction:	-65°C ~ 175°C

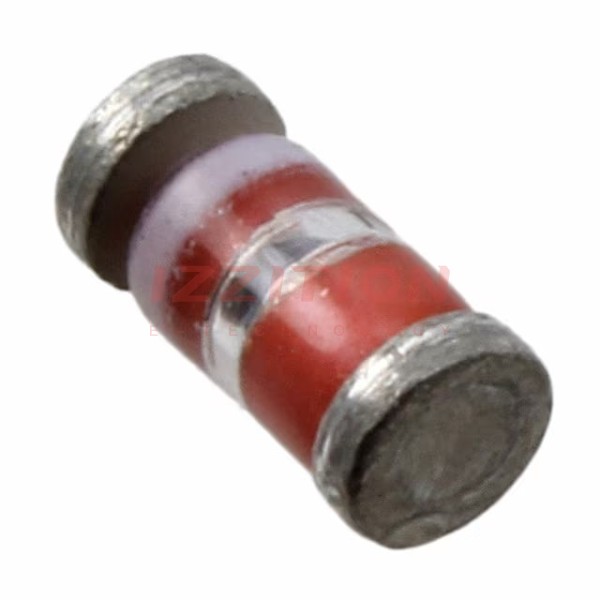

Microchip Technology JANTXV1N4938UR-1/TR
