Please send RFQ , we will respond immediately.

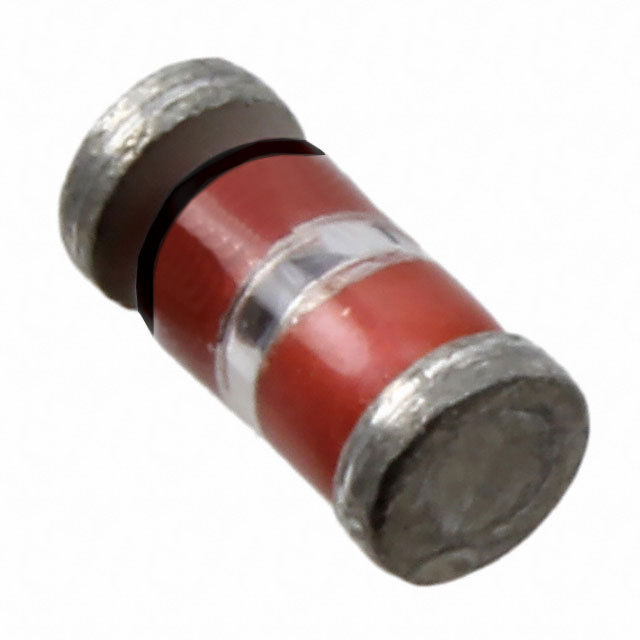

| Part Number | JANTXV1N3019CUR-1 | JANTXV1N3019DUR-1 | JANTXV1N3016CUR-1 | JANTXV1N3017CUR-1 | JANTXV1N3018CUR-1 | JANTXV1N3019BUR-1 |
|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 9.1 V | 9.1 V | 6.8 V | 7.5 V | 8.2 V | 9.1 V |
| Tolerance | ±2% | ±1% | ±2% | ±2% | ±2% | ±5% |
| Power - Max | 1 W | 1 W | 1 W | 1 W | 1 W | 1 W |
| Impedance (Max) (Zzt) | 6 Ohms | 6 Ohms | 3.5 Ohms | 4 Ohms | 4.5 Ohms | 6 Ohms |
| Current - Reverse Leakage @ Vr | 25 µA @ 6.9 V | 25 µA @ 6.9 V | 150 µA @ 5.2 V | 100 µA @ 5.7 V | 50 µA @ 6.2 V | 25 µA @ 6.9 V |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA | 1.2 V @ 200 mA | 1.2 V @ 200 mA | 1.2 V @ 200 mA | 1.2 V @ 200 mA | 1.2 V @ 200 mA |
| Operating Temperature | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-213AB, MELF (Glass) | DO-213AB, MELF (Glass) | DO-213AB, MELF (Glass) | DO-213AB, MELF (Glass) | DO-213AB, MELF (Glass) | DO-213AB, MELF (Glass) |
| Supplier Device Package | DO-213AB (MELF, LL41) | DO-213AB (MELF, LL41) | DO-213AB (MELF, LL41) | DO-213AB (MELF, LL41) | DO-213AB (MELF, LL41) | DO-213AB (MELF, LL41) |
