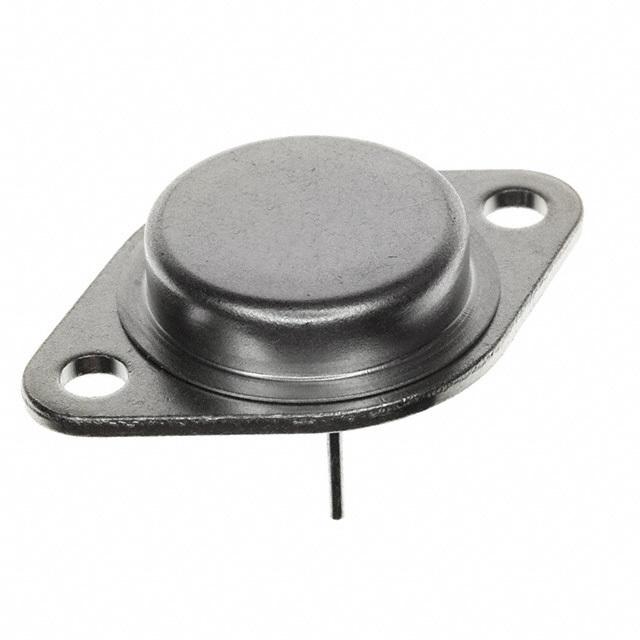

Microchip Technology-JANTX2N6052 - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Part Number	JANTX2N6052	JANTX2N6058	JANTX2N6032	JANTX2N6051
Manufacturer	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology
Product Status	Active	Active	Active	Active
Transistor Type	PNP - Darlington	NPN - Darlington	NPN	PNP - Darlington
Current - Collector (Ic) (Max)	12 A	12 A	50 A	12 A
Voltage - Collector Emitter Breakdown (Max)	100 V	80 V	90 V	80 V
Vce Saturation (Max) @ Ib, Ic	3V @ 120mA, 12A	3V @ 120mA, 12A	-	3V @ 120mA, 12A
Current - Collector Cutoff (Max)	1mA	1mA	25mA (ICBO)	1mA
DC Current Gain (hFE) (Min) @ Ic, Vce	1000 @ 6A, 3V	1000 @ 6A, 3V	10 @ 50A, 2.6V	1000 @ 6A, 3V
Power - Max	150 W	150 W	140 W	150 W
Frequency - Transition	-	-	-	-
Operating Temperature	-55°C ~ 175°C (TJ)	-55°C ~ 175°C (TJ)	-65°C ~ 200°C (TA)	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	TO-204AA, TO-3	TO-204AA, TO-3	TO-204AA, TO-3	TO-204AA, TO-3
Supplier Device Package	TO-204AA (TO-3)	TO-3	TO-3	TO-204AA (TO-3)

Transistor Type:	PNP - Darlington
Current - Collector (Ic) (Max):	12 A
Voltage - Collector Emitter Breakdown (Max):	100 V
Vce Saturation (Max) @ Ib, Ic:	3V @ 120mA, 12A
Current - Collector Cutoff (Max):	1mA
DC Current Gain (hFE) (Min) @ Ic, Vce:	1000 @ 6A, 3V
Power - Max:	150 W
Frequency - Transition:	-
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-204AA, TO-3
Supplier Device Package:	TO-204AA (TO-3)

Microchip Technology JANTX2N6052
