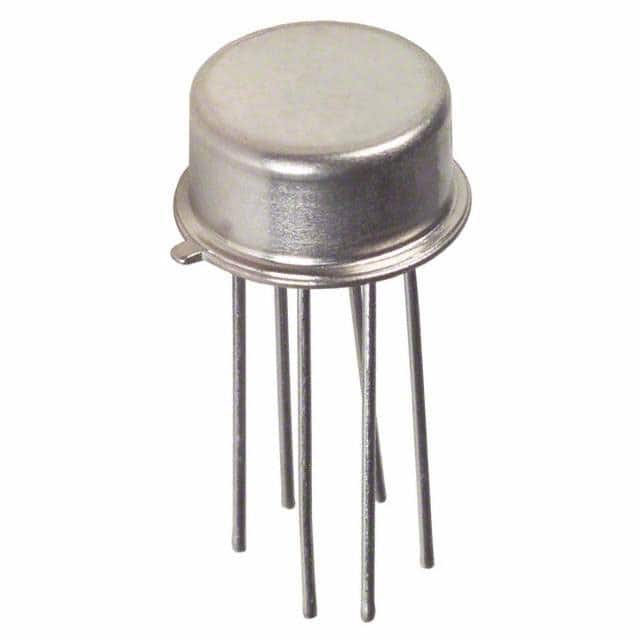

| Part Number | JANTX2N5795 | JANTX2N5795A | JANTX2N5796 | JANTXV2N5795 | JANTX2N5793 |
|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active |
| Transistor Type | 2 PNP (Dual) | 2 PNP (Dual) | 2 PNP (Dual) | 2 PNP (Dual) | 2 NPN (Dual) |
| Current - Collector (Ic) (Max) | 600mA | 600mA | 600mA | 600mA | 600mA |
| Voltage - Collector Emitter Breakdown (Max) | 60V | 60V | 60V | 60V | 40V |
| Vce Saturation (Max) @ Ib, Ic | 1.6V @ 50mA, 500mA | 1.6V @ 50mA, 500mA | 1.6V @ 50mA, 500mA | 1.6V @ 50mA, 500mA | 900mV @ 30mA, 300mA |
| Current - Collector Cutoff (Max) | 10µA (ICBO) | 10µA (ICBO) | 10µA (ICBO) | 10µA (ICBO) | 10µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 40 @ 150mA, 10V | 40 @ 150mA, 10V | 100 @ 150mA, 10V | 40 @ 150mA, 10V | 40 @ 150mA, 10V |
| Power - Max | 600mW | 600mW | 600mW | 600mW | 600mW |
| Frequency - Transition | - | - | - | - | - |
| Operating Temperature | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 200°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-78-6 Metal Can | TO-78-6 Metal Can | TO-78-6 Metal Can | TO-78-6 Metal Can | TO-78-6 Metal Can |
| Supplier Device Package | TO-78-6 | TO-78-6 | TO-78-6 | TO-78-6 | TO-78-6 |
