Microchip Technology-JANTX2N5416S - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Transistor Type:	PNP
Current - Collector (Ic) (Max):	1 A
Voltage - Collector Emitter Breakdown (Max):	300 V
Vce Saturation (Max) @ Ib, Ic:	2V @ 5mA, 50mA
Current - Collector Cutoff (Max):	1mA
DC Current Gain (hFE) (Min) @ Ic, Vce:	30 @ 50mA, 10V
Power - Max:	750 mW
Frequency - Transition:	-
Operating Temperature:	-65°C ~ 200°C (TJ)
Mounting Type:	Through Hole

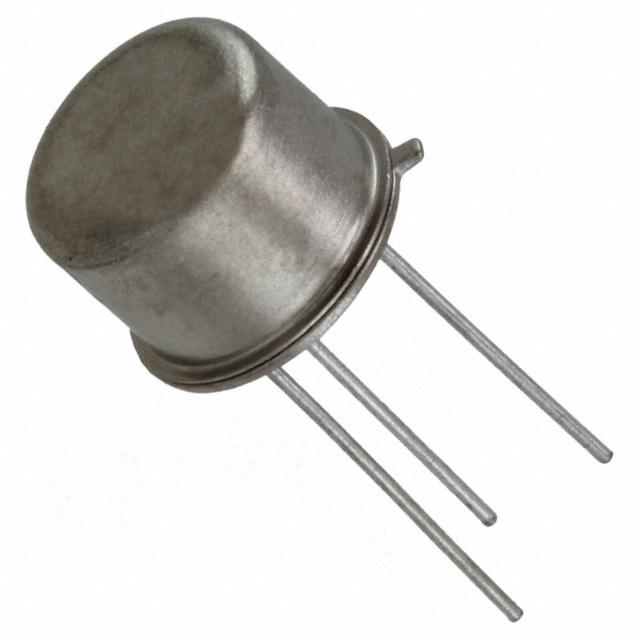

Package / Case:	TO-205AD, TO-39-3 Metal Can
Supplier Device Package:	TO-39

Microchip Technology JANTX2N5416S
