Microchip Technology-JANTX2N5303 - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Transistor Type:	NPN
Current - Collector (Ic) (Max):	20 A
Voltage - Collector Emitter Breakdown (Max):	80 V
Vce Saturation (Max) @ Ib, Ic:	2V @ 4A, 20A
Current - Collector Cutoff (Max):	10µA
DC Current Gain (hFE) (Min) @ Ic, Vce:	15 @ 10A, 2V
Power - Max:	5 W
Frequency - Transition:	-
Operating Temperature:	-
Mounting Type:	Through Hole
Package / Case:	TO-204AA, TO-3
Supplier Device Package:	TO-3 (TO-204AA)

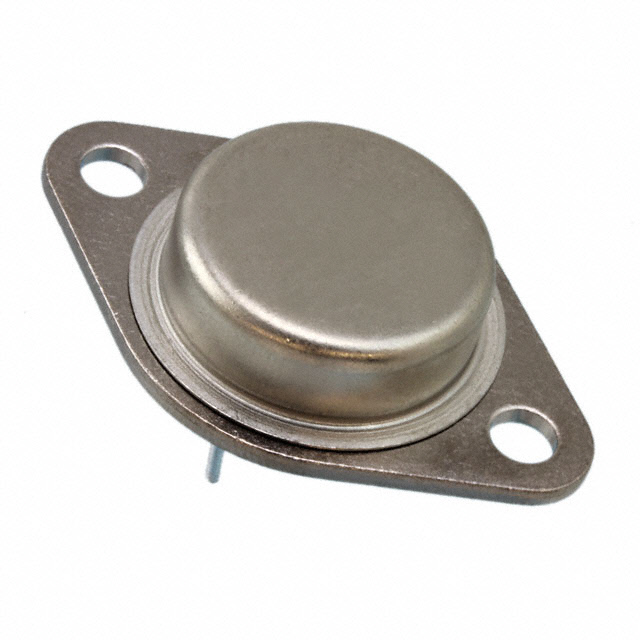

Microchip Technology JANTX2N5303
