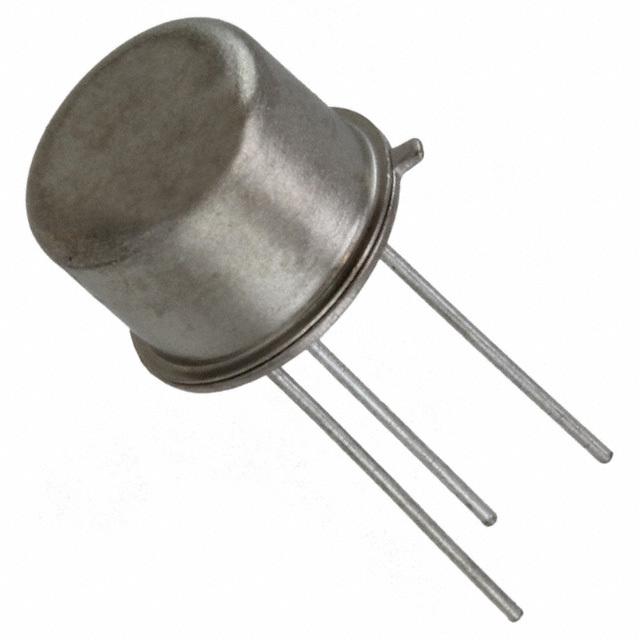

| Part Number | JANTX2N3762 | JANTX2N3792 | JANTX2N3772 | JANTX2N3763 | JANTX2N3762L |
|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active |
| Transistor Type | PNP | PNP | NPN | PNP | PNP |
| Current - Collector (Ic) (Max) | 1.5 A | 10 A | 20 A | 1.5 A | 1.5 A |
| Voltage - Collector Emitter Breakdown (Max) | 40 V | 80 V | 60 V | 60 V | 40 V |
| Vce Saturation (Max) @ Ib, Ic | 900mV @ 100mA, 1A | 2.5V @ 2A, 10A | 4V @ 4A, 20A | 900mV @ 100mA, 1A | 900mV @ 100mA, 1A |
| Current - Collector Cutoff (Max) | 10µA (ICBO) | 5mA | 5mA | 10µA (ICBO) | 100µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 30 @ 1A, 1.5V | 30 @ 3A, 2V | 15 @ 10A, 4V | 20 @ 1A, 1.5V | 40 @ 500mA, 1V |
| Power - Max | 1 W | 5 W | 6 W | 1 W | 1 W |
| Frequency - Transition | - | - | - | - | - |
| Operating Temperature | -55°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) | -55°C ~ 200°C (TJ) | -55°C ~ 200°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-205AD, TO-39-3 Metal Can | TO-204AA, TO-3 | TO-204AA, TO-3 | TO-205AD, TO-39-3 Metal Can | TO-205AA, TO-5-3 Metal Can |
| Supplier Device Package | TO-39 | TO-3 | TO-3 | TO-39 (TO-205AD) | TO-5 |
