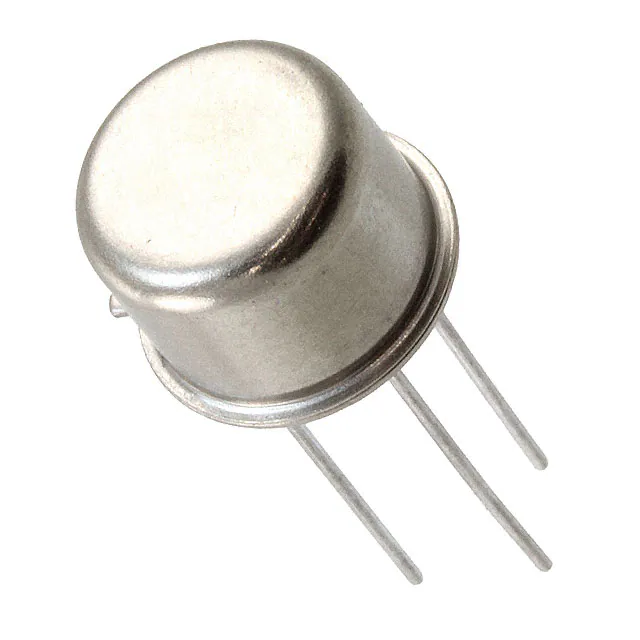

| Part Number | JANTX2N3637 | JANTX2N3637L | JANTX2N3636 |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active |
| Transistor Type | PNP | PNP | PNP |
| Current - Collector (Ic) (Max) | 1 A | 1 A | 10 µA |
| Voltage - Collector Emitter Breakdown (Max) | 175 V | 175 V | 175 V |
| Vce Saturation (Max) @ Ib, Ic | 600mV @ 5mA, 50mA | 600mV @ 5mA, 50mA | 600mV @ 5mA, 50mA |
| Current - Collector Cutoff (Max) | 10µA | 10µA | 10µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 50mA, 10V | 100 @ 50mA, 10V | 50 @ 50mA, 10V |
| Power - Max | 1 W | 1 W | 1 W |
| Frequency - Transition | - | - | - |
| Operating Temperature | -65°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-205AA, TO-5-3 Metal Can | TO-205AA, TO-5-3 Metal Can | TO-205AD, TO-39-3 Metal Can |
| Supplier Device Package | TO-5 | TO-5 | TO-39 (TO-205AD) |
