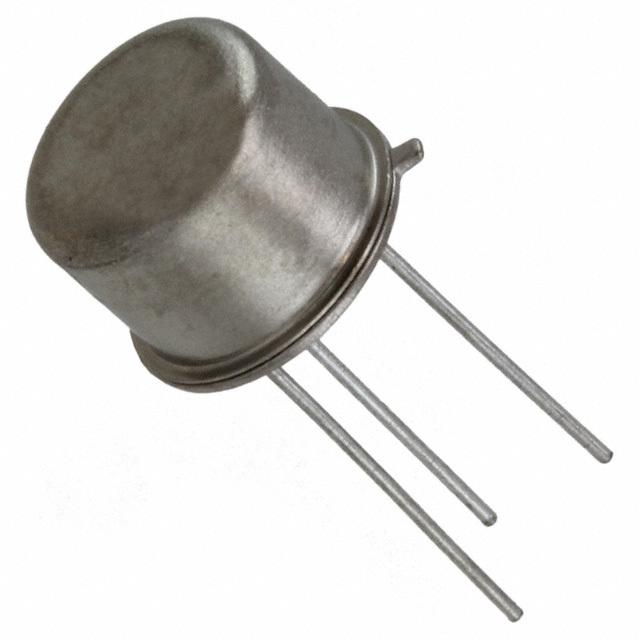

| Part Number | JANTX2N3506 | JANTX2N3500 | JANTX2N3501 |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active |
| Transistor Type | NPN | NPN | NPN |
| Current - Collector (Ic) (Max) | 3 A | 300 mA | 300 mA |
| Voltage - Collector Emitter Breakdown (Max) | 40 V | 150 V | 150 V |
| Vce Saturation (Max) @ Ib, Ic | 1.5V @ 250mA, 2.5A | 400mV @ 15mA, 150mA | 400mV @ 15mA, 150mA |
| Current - Collector Cutoff (Max) | - | 10µA (ICBO) | 10µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 40 @ 1.5A, 2V | 40 @ 150mA, 10V | 100 @ 150mA, 10V |
| Power - Max | 1 W | 1 W | 1 W |
| Frequency - Transition | - | - | - |
| Operating Temperature | -65°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-205AD, TO-39-3 Metal Can | TO-205AD, TO-39-3 Metal Can | TO-205AD, TO-39-3 Metal Can |
| Supplier Device Package | TO-39 (TO-205AD) | TO-39 (TO-205AD) | TO-39 |
