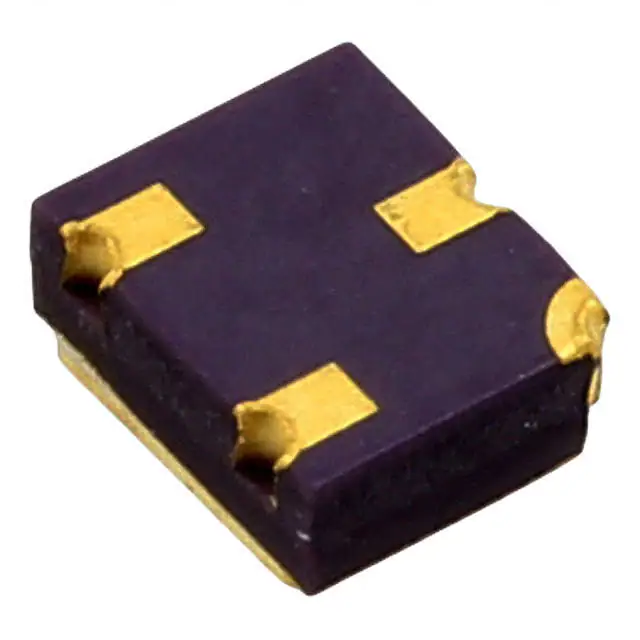

| Part Number | JANTX2N3501U4/TR | JANTX2N3501UB/TR | JANTX2N3500U4/TR |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active |
| Transistor Type | NPN | NPN | NPN |
| Current - Collector (Ic) (Max) | 300 mA | 300 mA | 300 mA |
| Voltage - Collector Emitter Breakdown (Max) | 150 V | 150 V | 150 V |
| Vce Saturation (Max) @ Ib, Ic | 400mV @ 15mA, 150mA | 400mV @ 15mA, 150mA | 400mV @ 15mA, 150mA |
| Current - Collector Cutoff (Max) | 50nA (ICBO) | 10µA (ICBO) | 50nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 150mA, 10V | 100 @ 150mA, 10V | 40 @ 150mA, 10V |
| Power - Max | 1 W | 500 mW | 1 W |
| Frequency - Transition | - | - | - |
| Operating Temperature | -65°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 3-SMD, No Lead | 3-SMD, No Lead | 3-SMD, No Lead |
| Supplier Device Package | U4 | UB | U4 |
