Microchip Technology-JANTX2N2905A - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Part Number	JANTX2N2905A	JANTX2N2907A	JANTX2N2945A	JANTX2N2906A	JANTX2N2905AL	JANTX2N2904A
Manufacturer	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology
Product Status	Active	Active	Active	Active	Active	Active
Transistor Type	PNP	PNP	PNP	PNP	PNP	PNP
Current - Collector (Ic) (Max)	600 mA	600 mA	100 mA	600 mA	600 mA	600 mA
Voltage - Collector Emitter Breakdown (Max)	60 V	60 V	20 V	60 V	60 V	60 V
Vce Saturation (Max) @ Ib, Ic	1.6V @ 50mA, 500mA	1.6V @ 50mA, 500mA	-	1.6V @ 50mA, 500mA	1.6V @ 50mA, 500mA	1.6V @ 50mA, 500mA
Current - Collector Cutoff (Max)	1µA	50nA	10µA (ICBO)	50nA	1µA	10µA
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 150mA, 10V	100 @ 150mA, 10V	70 @ 1mA, 500mV	40 @ 150mA, 10V	100 @ 150mA, 10V	40 @ 150mA, 10V
Power - Max	800 mW	500 mW	400 mW	500 mW	800 mW	800 mW
Frequency - Transition	-	-	-	-	-	-
Operating Temperature	-65°C ~ 200°C (TJ)	-65°C ~ 200°C (TJ)	-65°C ~ 200°C (TJ)	-65°C ~ 200°C (TJ)	-65°C ~ 200°C (TJ)	-65°C ~ 200°C (TJ)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	TO-205AD, TO-39-3 Metal Can	TO-206AA, TO-18-3 Metal Can	TO-206AB, TO-46-3 Metal Can	TO-206AA, TO-18-3 Metal Can	TO-205AA, TO-5-3 Metal Can	TO-205AD, TO-39-3 Metal Can
Supplier Device Package	TO-39 (TO-205AD)	TO-206AA (TO-18)	TO-46-3	TO-18 (TO-206AA)	TO-5	TO-39 (TO-205AD)

Transistor Type:	PNP
Current - Collector (Ic) (Max):	600 mA
Voltage - Collector Emitter Breakdown (Max):	60 V
Vce Saturation (Max) @ Ib, Ic:	1.6V @ 50mA, 500mA
Current - Collector Cutoff (Max):	1µA
DC Current Gain (hFE) (Min) @ Ic, Vce:	100 @ 150mA, 10V
Power - Max:	800 mW
Frequency - Transition:	-
Operating Temperature:	-65°C ~ 200°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-205AD, TO-39-3 Metal Can
Supplier Device Package:	TO-39 (TO-205AD)

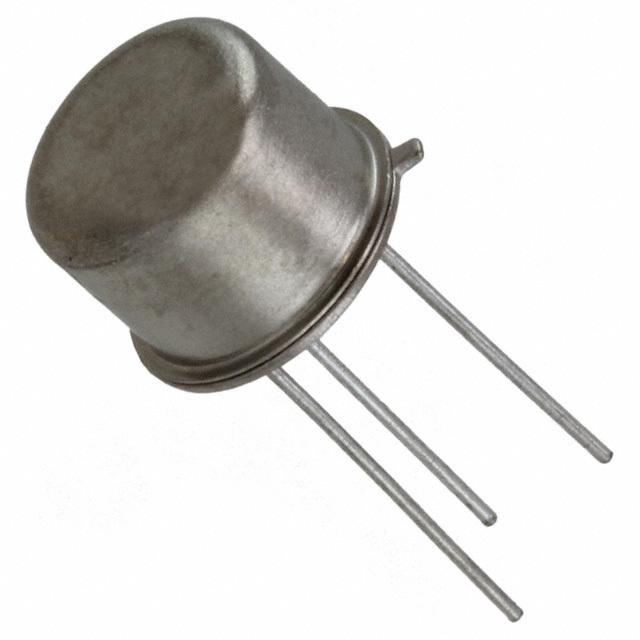

Microchip Technology JANTX2N2905A
