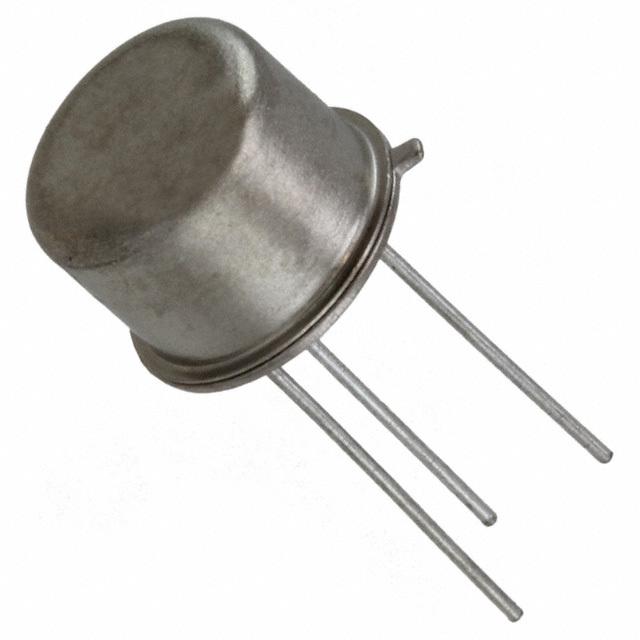

| Part Number | JANTX2N2904A | JANTX2N2907A | JANTX2N2905A | JANTX2N2906A |
|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active |
| Transistor Type | PNP | PNP | PNP | PNP |
| Current - Collector (Ic) (Max) | 600 mA | 600 mA | 600 mA | 600 mA |
| Voltage - Collector Emitter Breakdown (Max) | 60 V | 60 V | 60 V | 60 V |
| Vce Saturation (Max) @ Ib, Ic | 1.6V @ 50mA, 500mA | 1.6V @ 50mA, 500mA | 1.6V @ 50mA, 500mA | 1.6V @ 50mA, 500mA |
| Current - Collector Cutoff (Max) | 10µA | 50nA | 1µA | 50nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 40 @ 150mA, 10V | 100 @ 150mA, 10V | 100 @ 150mA, 10V | 40 @ 150mA, 10V |
| Power - Max | 800 mW | 500 mW | 800 mW | 500 mW |
| Frequency - Transition | - | - | - | - |
| Operating Temperature | -65°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-205AD, TO-39-3 Metal Can | TO-206AA, TO-18-3 Metal Can | TO-205AD, TO-39-3 Metal Can | TO-206AA, TO-18-3 Metal Can |
| Supplier Device Package | TO-39 (TO-205AD) | TO-206AA (TO-18) | TO-39 (TO-205AD) | TO-18 (TO-206AA) |
