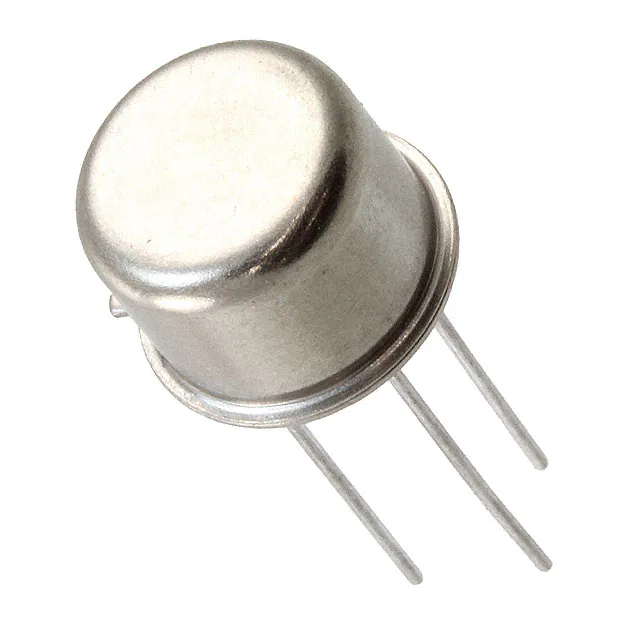

| Part Number | JANTX2N2328 | JANTX2N2329 | JANTX2N2323 | JANTX2N2326 |
|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Voltage - Off State | 300 V | 400 V | 50 V | 200 V |
| Voltage - Gate Trigger (Vgt) (Max) | 800 mV | 800 mV | 800 mV | 800 mV |
| Current - Gate Trigger (Igt) (Max) | 200 µA | 200 µA | 200 µA | 200 µA |
| Voltage - On State (Vtm) (Max) | - | - | - | - |
| Current - On State (It (AV)) (Max) | 220 mA | 220 mA | 220 mA | 220 mA |
| Current - On State (It (RMS)) (Max) | - | - | - | - |
| Current - Hold (Ih) (Max) | 2 mA | 2 mA | 2 mA | 2 mA |
| Current - Off State (Max) | - | - | - | - |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | - | - | - | - |
| SCR Type | Sensitive Gate | Sensitive Gate | Sensitive Gate | Sensitive Gate |
| Operating Temperature | -65°C ~ 125°C | -65°C ~ 125°C | -65°C ~ 125°C | -65°C ~ 125°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-205AA, TO-5-3 Metal Can | TO-205AA, TO-5-3 Metal Can | TO-205AA, TO-5-3 Metal Can | TO-205AA, TO-5-3 Metal Can |
| Supplier Device Package | TO-5 | TO-5 | TO-5-3 | TO-5 |
